GEOTECHNICAL MONITORING - Satevis-Systems

Satevis® LoRaWAN® // ROCKFALL & SLOPE STABILITY SENSING.

GEOTECHNICAL MONITORING

Engineered for extreme alpine and vertical environments, the Satevis® Alpha-INC SKM series delivers continuous, high-precision tilt monitoring on rockfall catch fences, drapery meshes, and unstable rock faces. Available in scalable Tri-Axis ( ±10∘/±85∘ ) and Bi-Axis ( ±30∘/±55∘ ) configurations, these ultra-compact LoRaWAN® inclinometers offer up to 7 years of battery autonomy and an IP67 enclosure to detect barrier impact and rock movement in real time.

Submit a Project
SLOPE STABILITY, EXCAVATIONS & RETAINING STRUCTURES

GEOTECHNICAL MONITORING

Automated Wireless Tilt, Ground Movement & Crack Displacement Monitoring for Unstable Slopes, Retaining Walls, Deep Excavations & Embankments
Geotechnical assets—such as landslide-prone slopes, railway embankments, diaphragm walls, and tunnel portals—are continuously exposed to heavy rainfall, groundwater pressure fluctuations, and adjacent excavation works. Deploying miles of fragile sensor cables across unstable terrain or active construction zones leads to frequent cable shearing, high trenching costs, and delayed hazard detection.
The Satevis® LoRaWAN® wireless monitoring ecosystem eliminates field cabling by combining ultra-low-power Satevis® Alpha-Inc inclinometers (0.001° resolution) with plug-and-play Easy-Sense displacement and environmental probes. Civil and geotechnical engineers gain continuous, autonomous early-warning data over distances up to 15 km, with 7+ years of battery autonomy.
4 Parameters / 1 LoRaWAN® Network

KEY MONITORED PARAMETERS. GEOTECHNICAL PRECISION.

Continuous, high-resolution wireless sensing across unstable slopes, deep urban excavations, retaining walls, and tunnel portals—powered by ultra-low-power Satevis® Alpha-Inc and Easy-Sense™ sensor fusion nodes.

Param — 01 ±10° / ±85° Scalable

Slope & Retaining Wall Tilt

Continuous 2-axis or 3-axis angular rotation tracking on retaining walls, sheet piles, rockfaces, and landslide surface monuments (0.001° resolution).

  • 0.001° Resolution
  • 2/3-Axis MEMS
  • IP67 Aluminum
Engineering ValueEarly detection of sub-millimeter angular creep before structural failure or landslide acceleration.
Param — 02 10 mm to 400 mm Stroke

Crack & Joint Displacement

Sub-millimeter monitoring of tension cracks, retaining wall expansion joints, and tunnel lining convergence via Easy-Sense™ linear potentiometers (IP66).

  • ±0.01 mm Repeatability
  • M8-4Pin Fusion
  • 15-Bit ADC
Engineering ValuePowers and reads external crackmeters directly from the Alpha-Inc node in a single LoRaWAN® payload.
Param — 03 24/7 Edge Alarming

Deep Excavation & Shoring Deflection

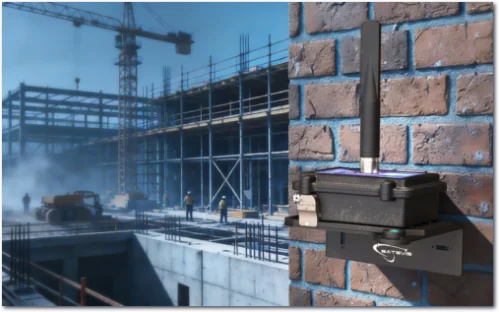

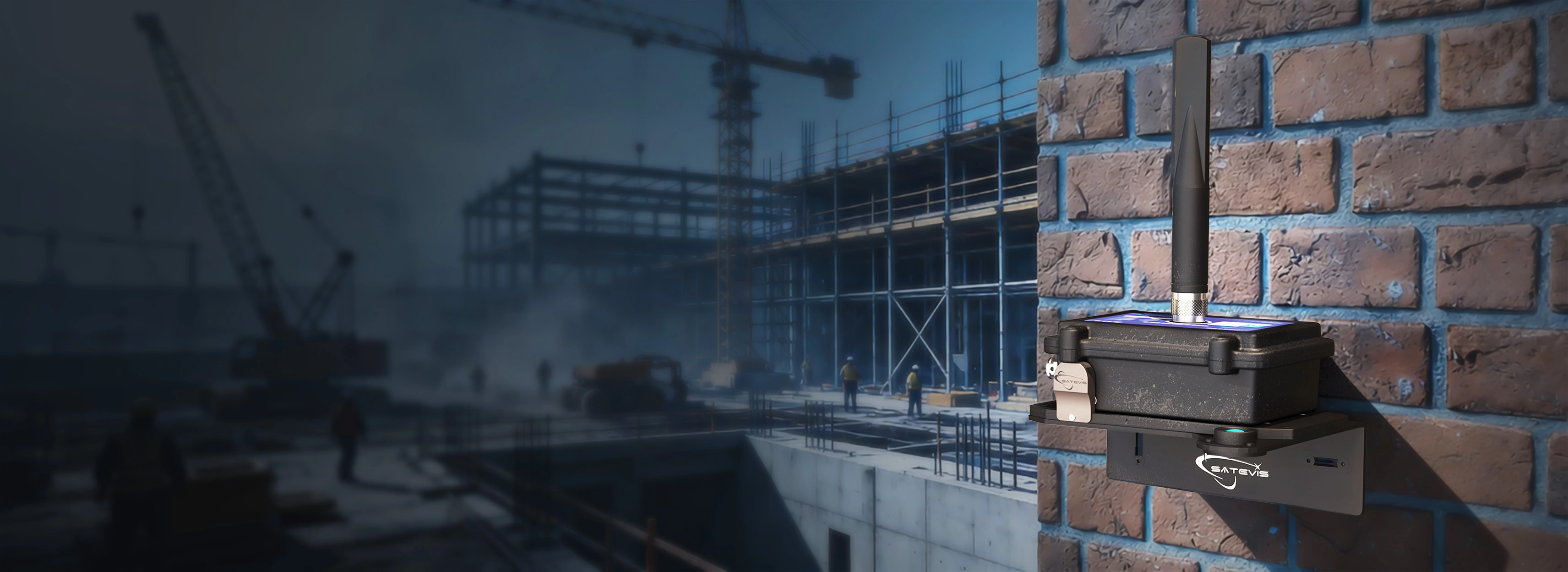

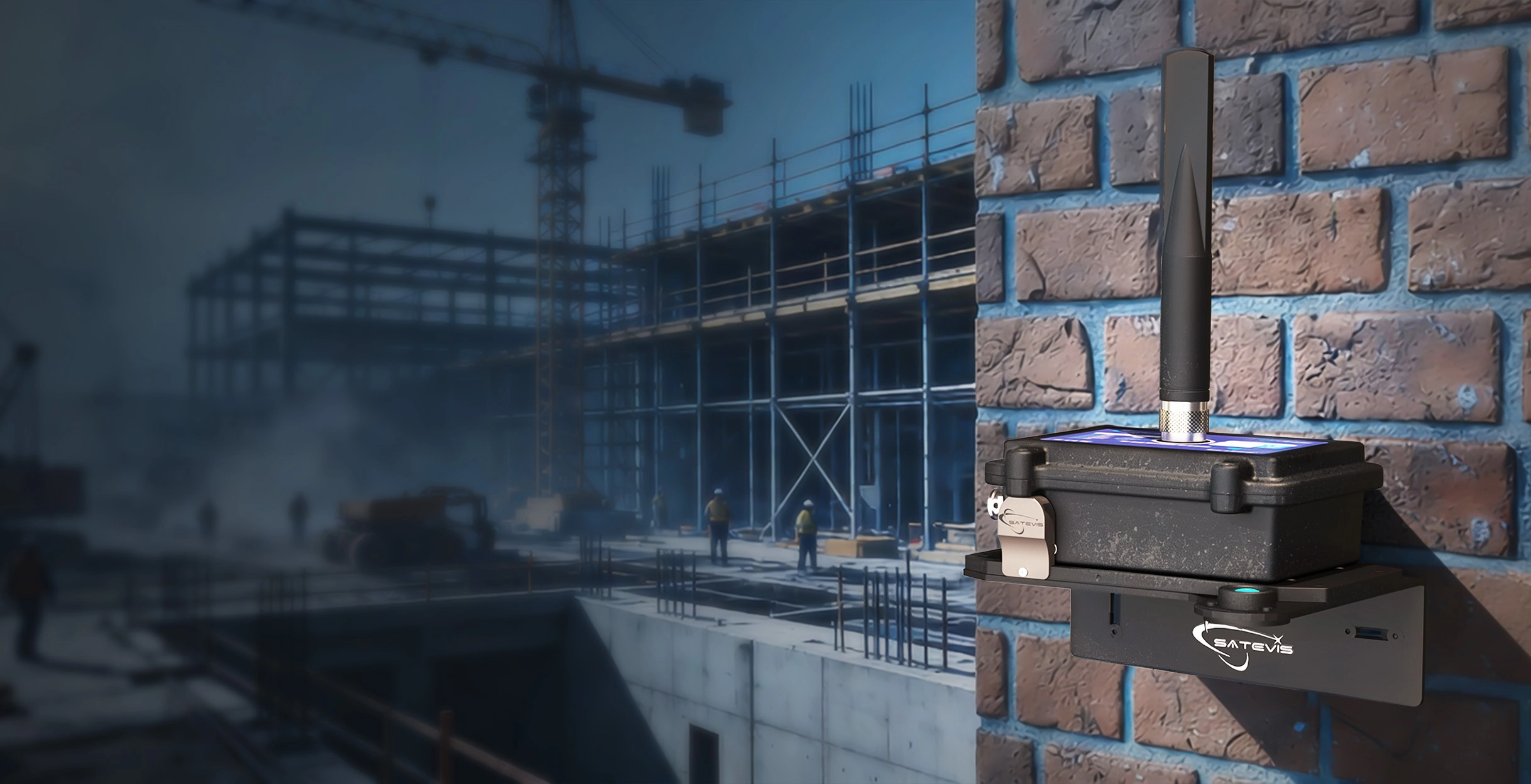

Real-time structural deflection control of secant pile walls, bracing struts, and adjacent building foundations during urban underground excavation.

  • 3-Level Thresholds
  • Magnetic Mount
  • 7+ Yrs Battery
Engineering ValueInstant LoRaWAN® alerts upon Minor, Severe, or Critical threshold breaches on active construction sites.
Param — 04 -40°C to +85°C / 0–100% RH

Rainfall & Pore-Water Correlation

Local ambient temperature and relative humidity logging via Easy-Sense™ TH probes to distinguish thermal expansion from genuine ground movement.

  • Thermal Drift Comp.
  • 3.3 VDC Powered
  • Plug & Play
Engineering ValueEliminates false alarms caused by solar radiation and daily temperature cycles on steel and concrete.
EASY-SENSE™ SENSOR FUSION ARCHITECTURE

WHY CHOOSE SATEVIS® SENSOR FUSION FOR GEOTECHNICAL & TUNNEL ASSETS?

In rugged geotechnical environments—such as steep mountain slopes, highway cuts, and deep excavation pits—installing separate data loggers for tiltmeters and crackmeters multiplies hardware and maintenance costs. With the Easy-Sense sensor fusion function built into every Satevis® Alpha-Inc inclinometer, you can plug an external linear displacement transducer (DISP-BJ / DISP-SR) or temperature/humidity probe (TH) directly into the inclinometer's rugged M8-4Pin connector:
01
DUAL TILT + CRACK MONITORING NODE
Measure both 3-axis wall inclination and joint/crack opening (10 mm to 400 mm) simultaneously through a single LoRaWAN® radio transmitter. .
02
TRENCHLESS & CABLE-FREE DEPLOYMENT
Eliminate vulnerable surface cables across active earthworks and rockfalls; the external sensor is powered directly by the Alpha-Inc internal battery (3.3 VDC, 15-bit ADC). .
03
3-LEVEL LANDSLIDE & EXCAVATION ALARMS
Internal flash memory stores zero-offset calibration and transmits instant LoRaWAN® uplink alerts (Minor / Severe / Critical) the moment ground movement accelerates.
04
15 KM OFF-GRID VALLEY & SITE COVERAGE
Up to 15 km LOS radio range to a solar-powered 15 km LOS radio range to a solar-powered Satevis® IoT Gateway, with native integration into CommonSense, Satevis® Cloud, TTN & ChirpStack.
RECOMMENDED HARDWARE CONFIGURATION
FEATURED SATEVIS® GEOTECHNICAL & SLOPE SENSORS

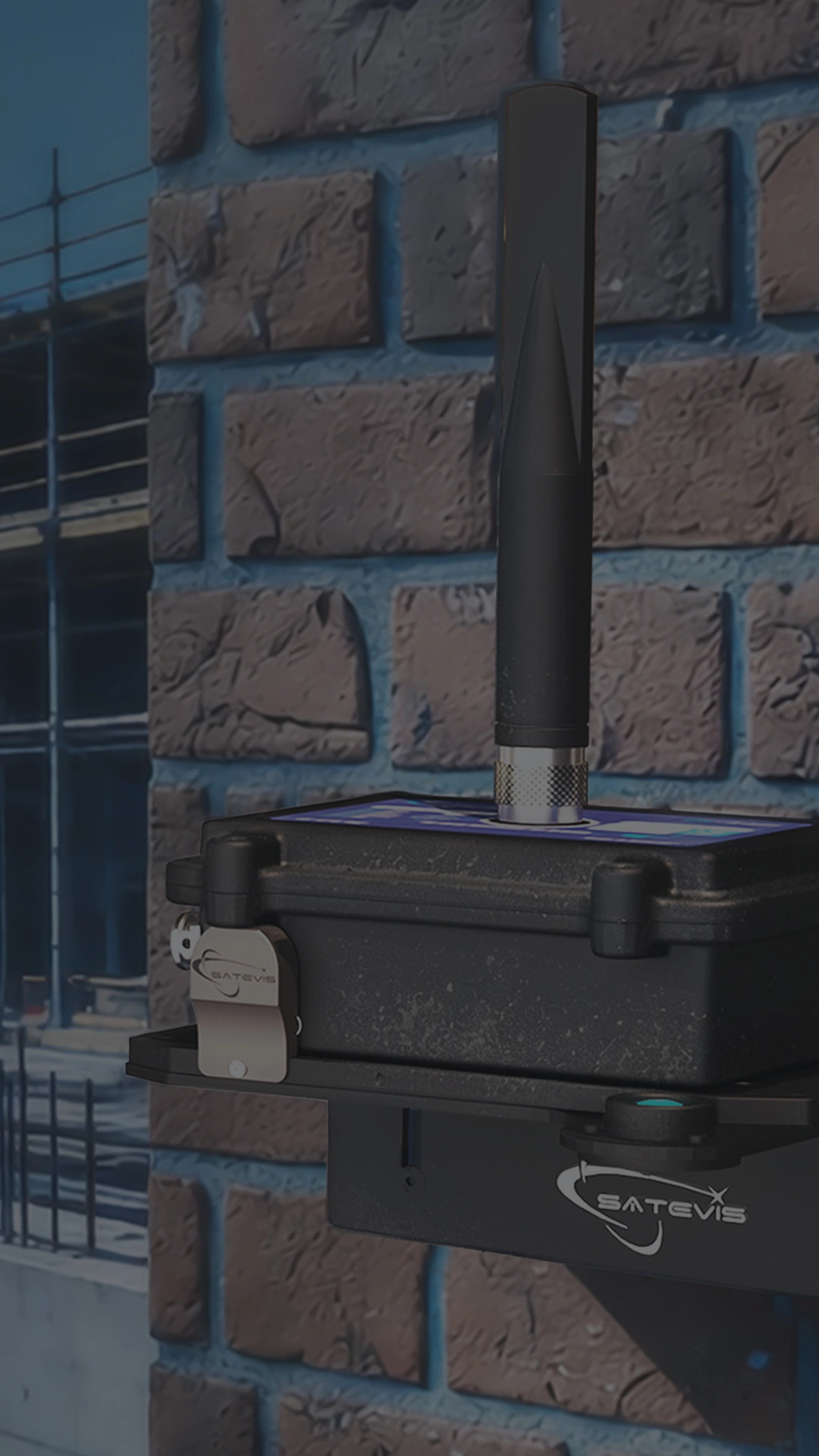

Tri-Axis or Bi-Axis Inclinometer LoRaWAN®
Satevis® Alpha-Inc SKM (10° or 30°)
High-precision Tri-Axis or Bi-Axis wireless inclinometer with scalable range for continuous landslide creep, retaining wall rotation, and deep excavation shoring deflection monitoring.
  • Range: Scalable ±10° / ±85° or ±30° / ±55°
  • Fusion Port: Built-in M8-4Pin Easy-Sense
  • Enclosure: IP67 Aluminum (7+ yrs battery)
M8-4Pin Sensor Fusion Plug & Play
Satevis® Easy-Sense DISP & TH
External plug-and-play probes powered directly by the Alpha-Inc (3.3 VDC) to track rock fracture widening, tension cracks, retaining wall joints, and ambient microclimate.
  • TH Probe: -40°C to +85°C / 0–100% RH
  • Crack Disp: 10 mm to 400 mm stroke (IP66)
  • Smart Memory: 15-bit ADC & 3-level alarms
Off-Grid Gateway IP67 / Solar
Satevis® IoT Solar Gateway
Rugged weatherproof and solar-autonomous LoRaWAN® gateway engineered for remote mountain slopes, railway embankments, open-pit mines, and off-grid excavation sites.
  • Coverage: 8-Ch SX1302 (up to 15 km LOS)
  • Backhaul: 4G/LTE Cellular, Ethernet & Wi-Fi
  • Platform: CommonSense, TTN & ChirpStack
Need a Turnkey Wireless Monitoring Architecture for Your Slope, Retaining Wall, or Excavation Project?

Our engineering team helps you specify the exact Satevis® Alpha-Inc inclinometers, Easy-Sense crack/joint meters, and solar LoRaWAN® gateways for your geotechnical site.
