BRIDGES, VIADUCTS & HIGH-RISE STRUCTURES
BRIDGES & BUILDINGS MONITORING
WIRELESS LORAWAN® TILT & DISPLACEMENT TRACKING

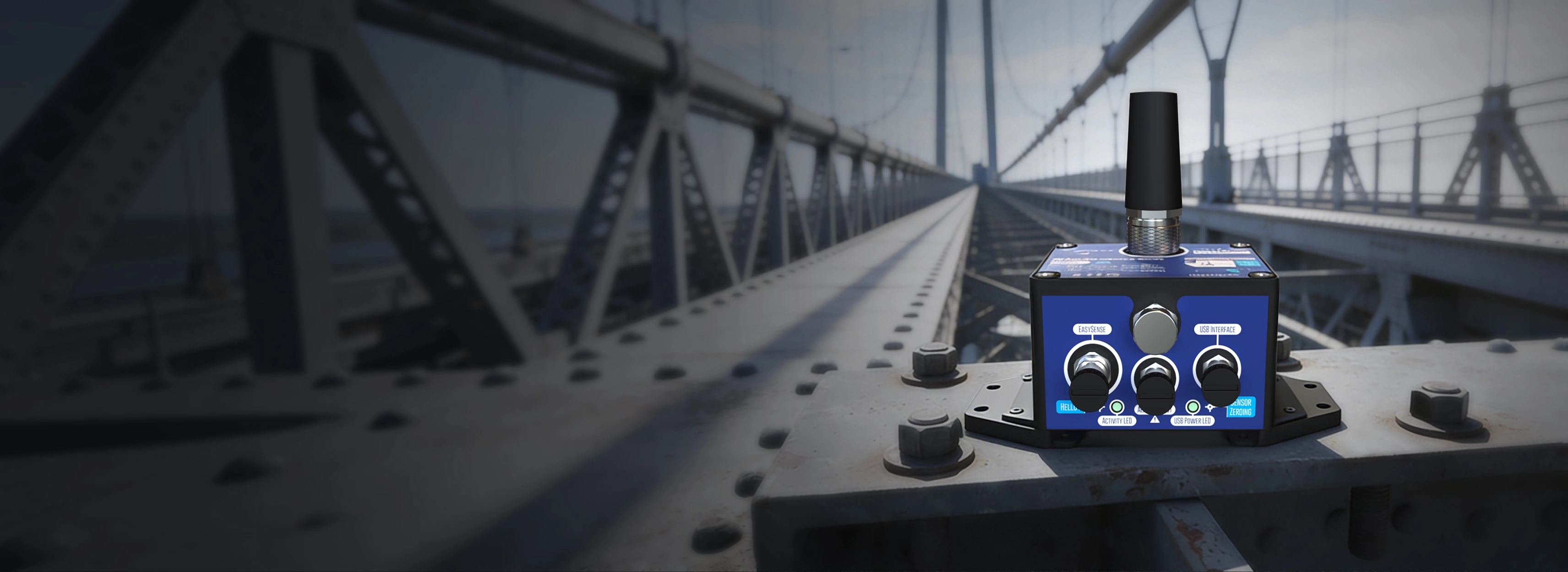

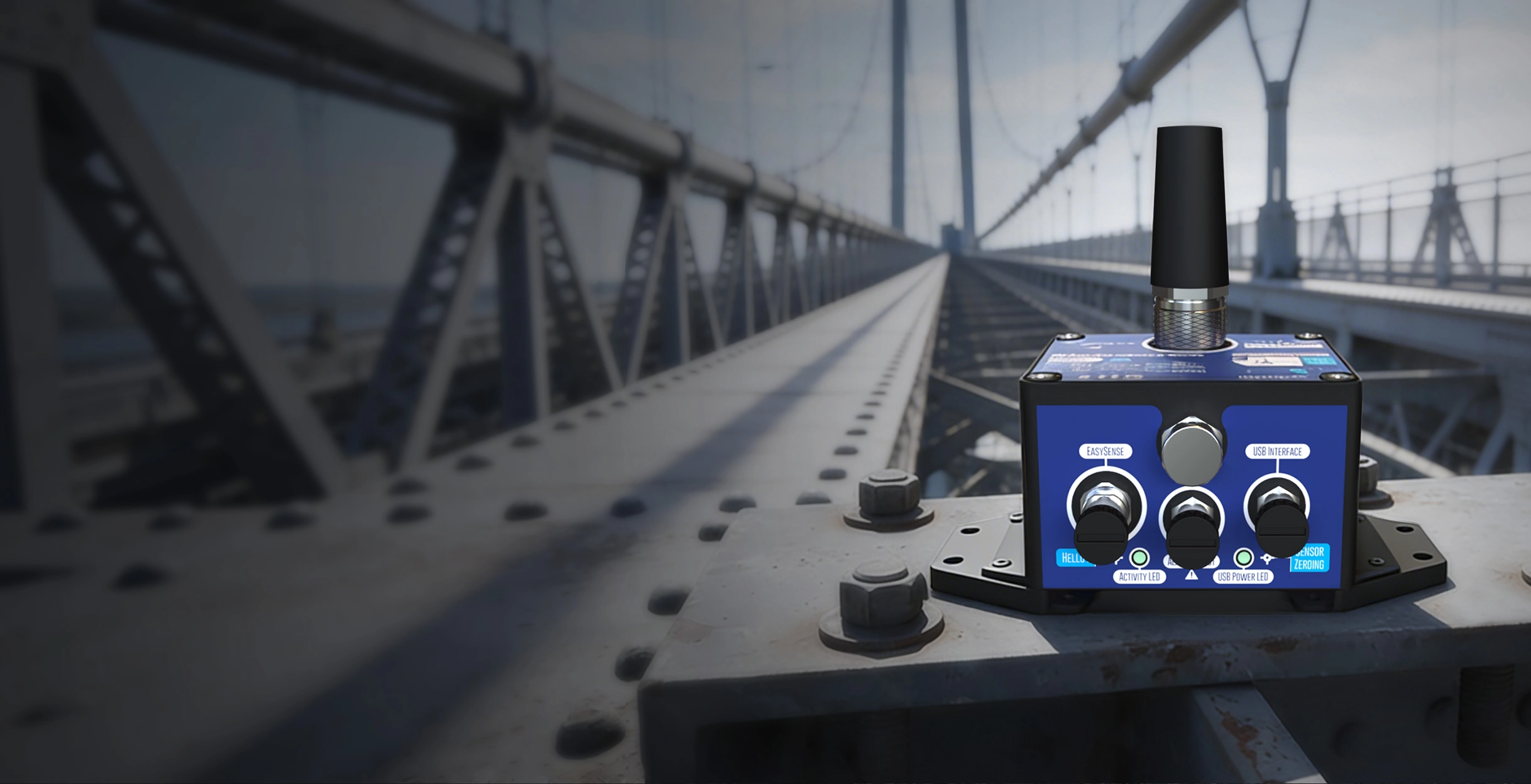

Aging bridges, highway viaducts, and high-rise buildings are continuously subjected to heavy traffic loads, wind-induced sway, thermal expansion, and foundation settlement. Traditional wired monitoring systems require expensive cabling and complex installation across large spans.
The Satevis® LoRaWAN® ecosystem provides civil engineers with a cable-free, ultra-low-power Structural Health Monitoring architecture. By combining high-precision wireless inclinometers (Satevis® Alpha-Inc) with plug-and-play linear displacement sensors (Easy-Sense), asset owners can detect micro-rotations on bridge piers, monitor deck deflection, and track structural joint movements in real time—with over 7 years of autonomous battery life.
• Pier & Abutment Tilt Monitoring: Detect millimeter-level foundation settlement and pier rotation with ±0.001° repeatability.
• Expansion Joint & Bearing Tracking: Measure thermal and load-induced linear displacements (10 mm to 400 mm stroke) directly connected to the inclinometer node.
• High-Rise & Historical Building Stability: Monitor façade plumbness, differential settlement, and adjacent excavation impacts without damaging structures.
• Long-Range LoRaWAN® Connectivity: Penetrate dense reinforced concrete and transmit data up to 15 km (Line-of-Sight) to a single Satevis® IoT Gateway.

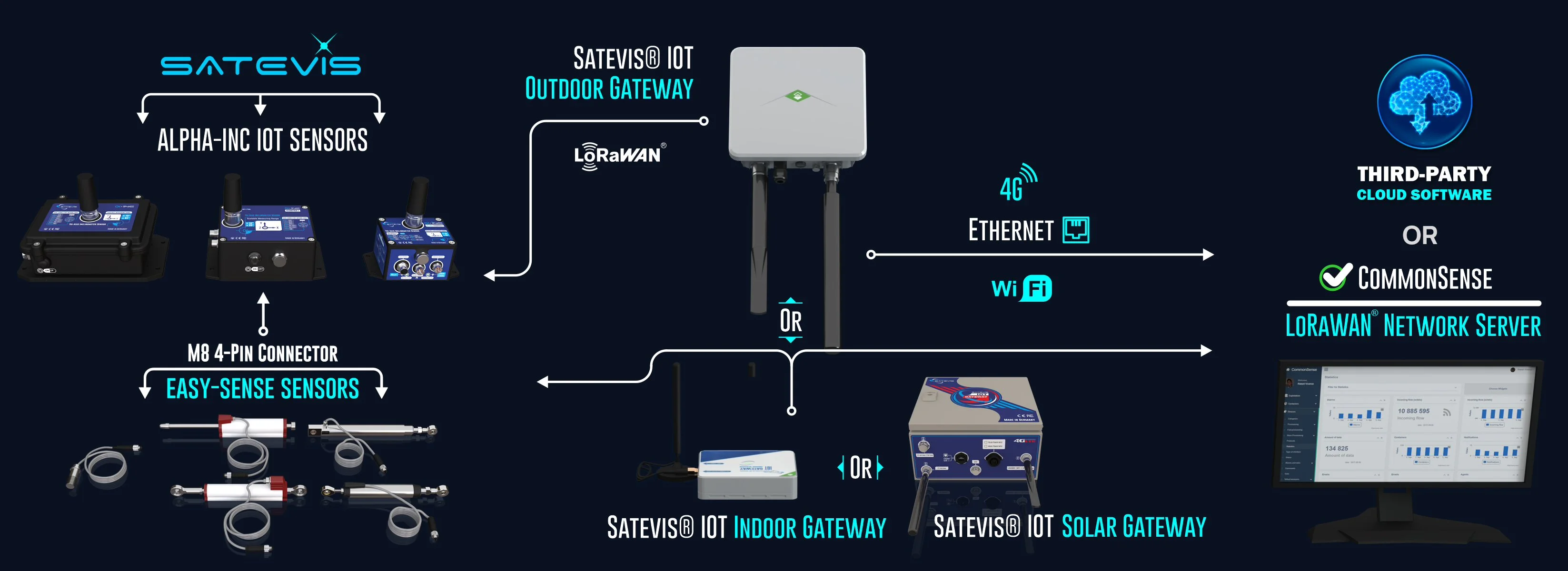

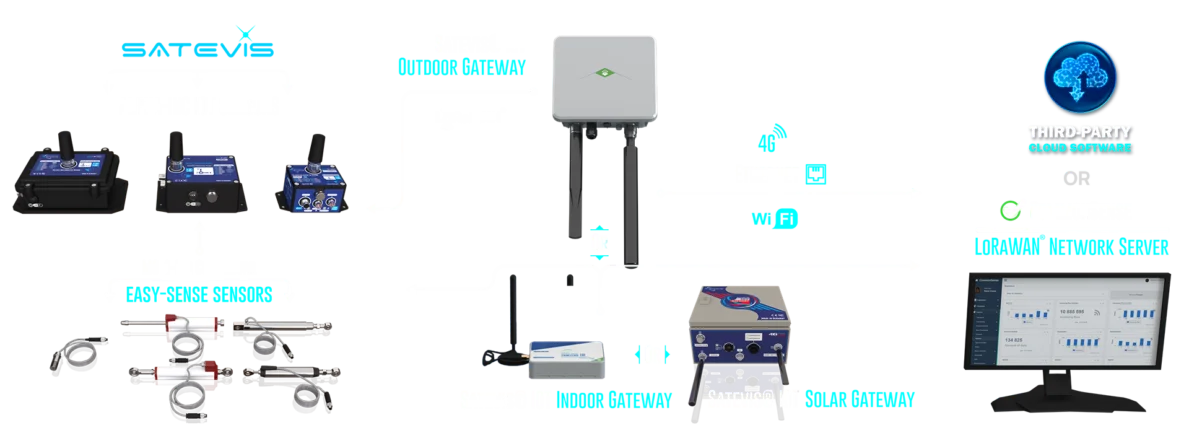

EASY-SENSE™ SENSOR FUSION ARCHITECTURE

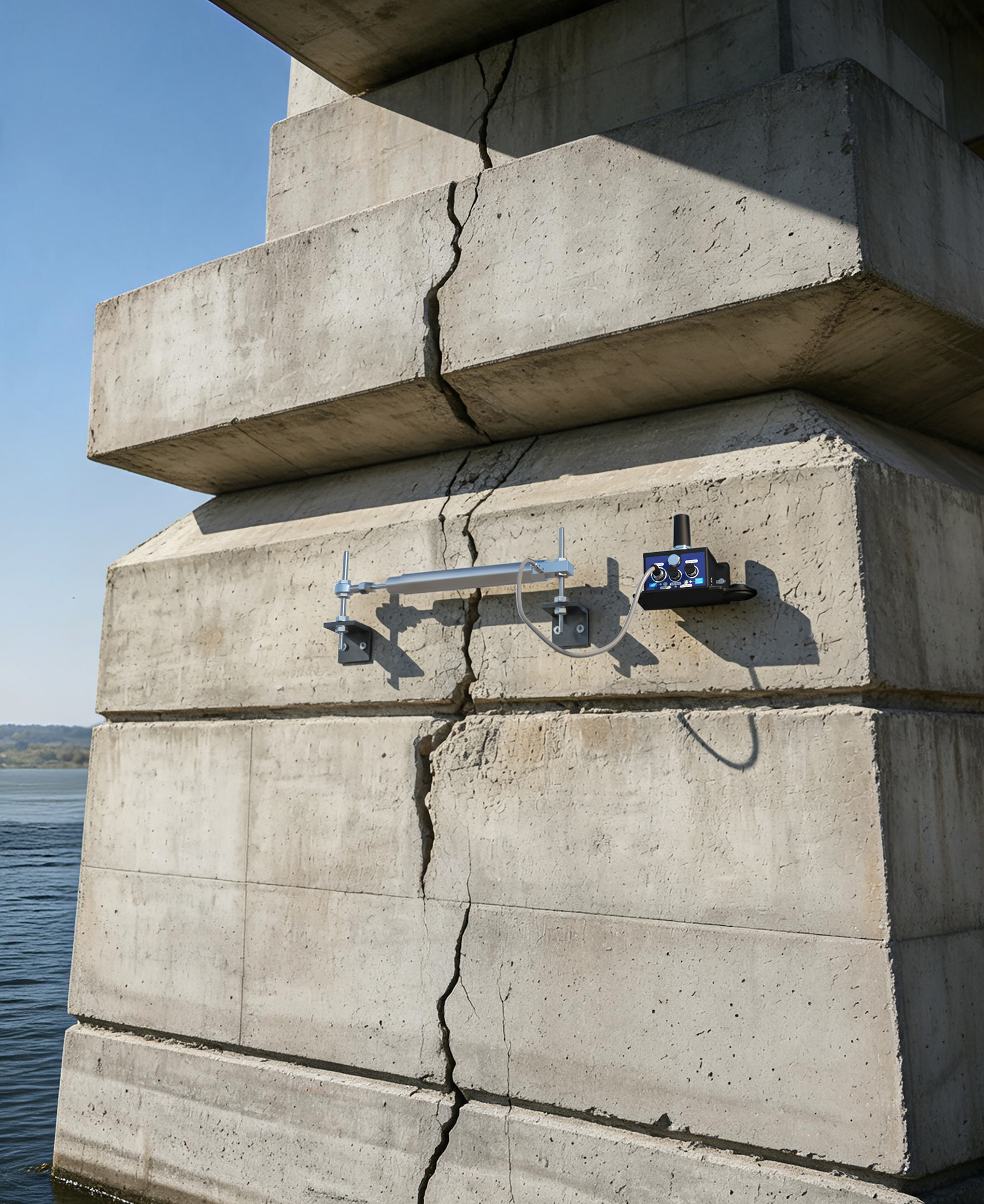

SMART SENSOR FUSION: TILT + JOINT IN ONE NODE
Eliminate redundant wireless transmitters. Thanks to the embedded Easy-Sense interface (M8 4-pin connector), a single Satevis® Alpha-Inc inclinometer powers and reads external linear displacement or temperature/humidity sensors—transmitting fused structural data in a single LoRaWAN® payload.
01
DUAL PIER TILT + JOINT NODE
Transmit both 2D/3D pier or facade inclination (0.001°) and expansion joint or crack opening through one LoRaWAN® transmitter.
02
PLUG-AND-PLAY M8 FUSION
Eliminate costly bridge deck cabling; the Easy-Sense™ probe is powered directly by the Alpha-Inc battery 3.3 VDC with an onboard 15-bit ADC.
03
3-LEVEL STRUCTURAL ALARMING
Non-volatile flash memory stores zero-offsets and triggers instant LoRaWAN® uplink alerts (Minor / Severe / Critical) upon settlement or crack breaches.
04
MULTI-SPAN 15 KM COVERAGE
Up to 15 km LOS radio range to a single Satevis® IoT Gateway covering entire viaducts, compatible with CommonSense, Satevis® Cloud, TTN & ChirpStack.
RECOMMENDED HARDWARE CONFIGURATION
FEATURED SATEVIS® BRIDGE & BUILDING SHM SENSORS

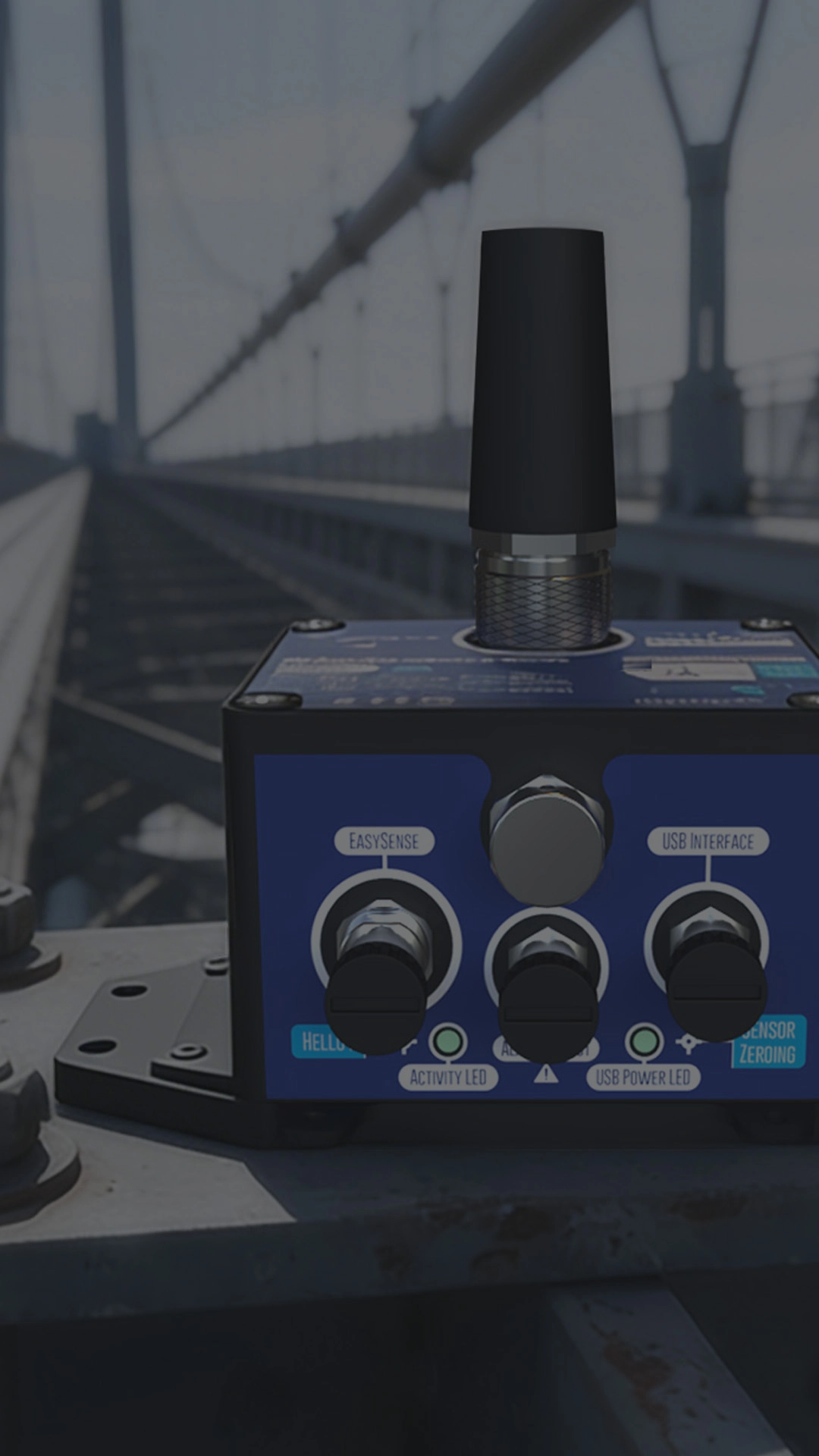

Tri-Axis or Bi-Axis Inclinometer
LoRaWAN®
Satevis® Alpha-Inc SK (10° or 30°)
High-precision Tri-axis or Bi-Axis wireless inclinometer with scalable range for continuous bridge pier rotation, abutment settlement, and high-rise facade tilt monitoring.
- Range: Scalable ±10° / ±85° or ±30° / ±55°
- Fusion Port: Built-in M8-4Pin Easy-Sense
- Enclosure: IP67 Aluminum (7+ yrs battery)
M8-4Pin Sensor Fusion
Plug & Play
Satevis® Easy-Sense DISP & TH
External plug-and-play probes powered directly by the Alpha-Inc (3.3 VDC) to track deck expansion joints, structural shear cracks, and thermal dilation cycles.
- TH Probe: -40°C to +85°C / 0–100% RH
- Crack Disp: 10 mm to 400 mm stroke (IP66)
- Smart Memory: 15-bit ADC & 3-level alarms
Off-Grid Gateway
IP67 / Solar
Satevis® IoT Solar Gateway
Rugged weatherproof and solar-ready LoRaWAN® gateway engineered for multi-span viaducts, highway bridges, and large urban building complexes.
- Coverage: 8-Ch SX1302 (up to 15 km LOS)
- Backhaul: 4G/LTE Cellular, Ethernet & Wi-Fi
- Platform: CommonSense, TTN & ChirpStack
