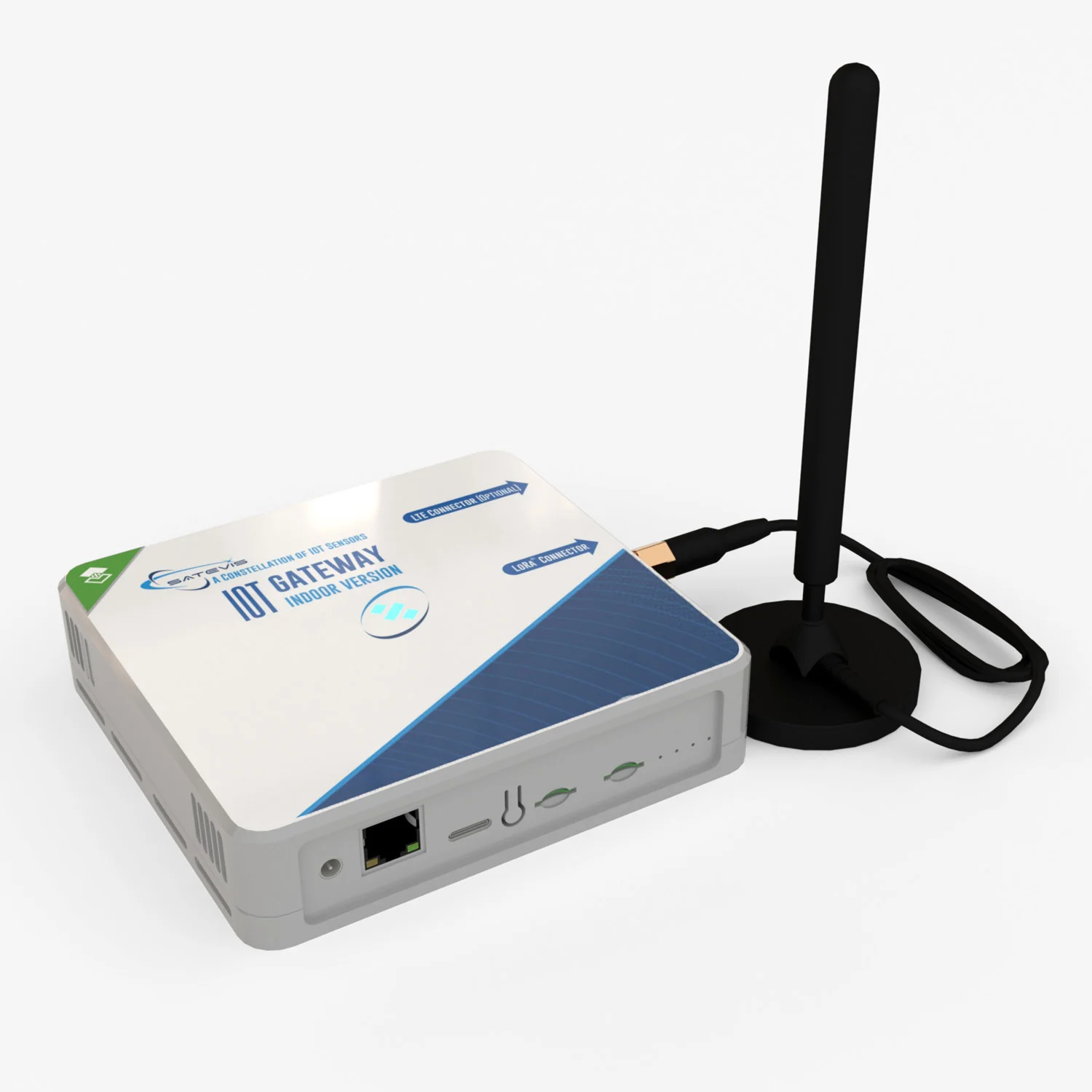

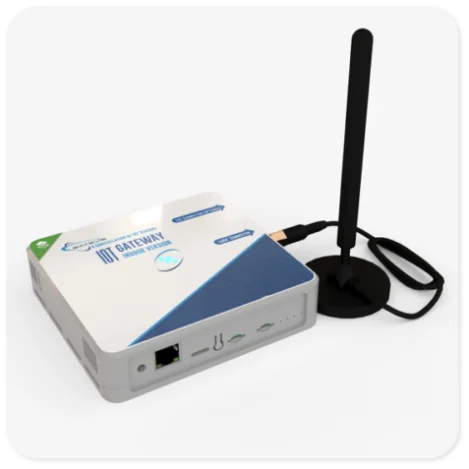

LoRaWAN® IoT Indoor Gateway

Satevis® IoT Gateway

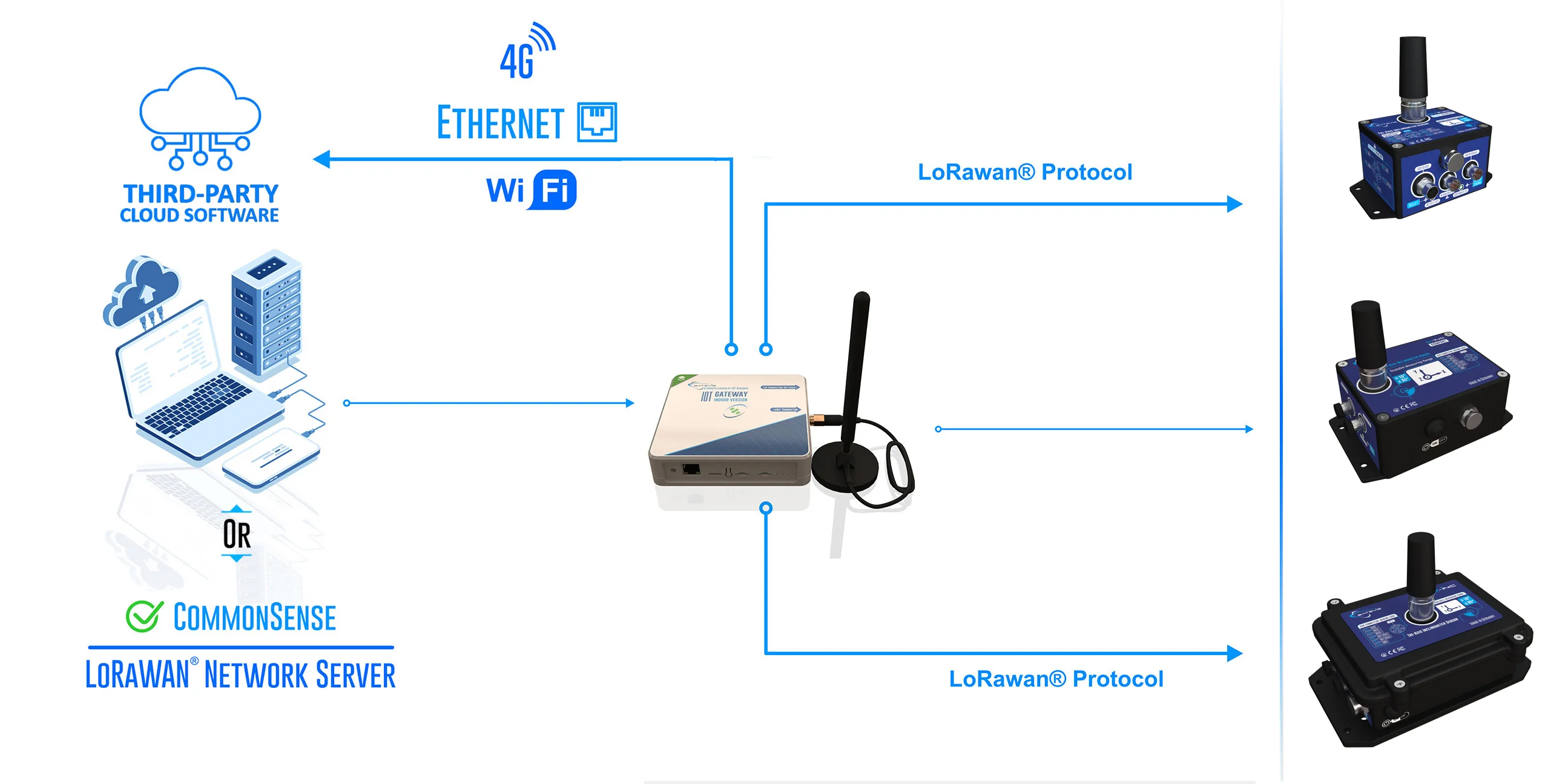

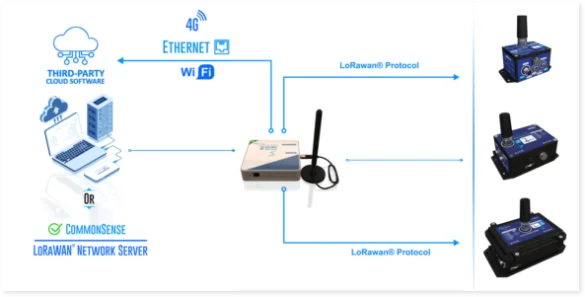

Best For: Smart Buildings, Factory Automation, and Warehousing. The Indoor Gateway is a compact yet powerful hub designed for controlled environments. It offers seamless LAN and WiFi connectivity with optional 4G/LTE backhaul, ensuring your data is always online. Connectivity: Ethernet (LAN), WiFi, Optional 4G/LTE LoRaWAN Protocol: V1.0.3 (Class A/B/C) Dimensions: Small Form Factor (143 x 135 x 34 mm)
		free configuration software (USB interface) Satevis® LINK Software

Datasheet

Selection Guide

Drawing

Get a Quote

Technical Documents

Technical Specifications

FAQ

Technical Specifications

Product Ref LoraWan® Protocol 4G Connectivity Mechanical Power Supply Accessories

Product Reference
SATEVIS-IOT-IND-GTW-FREQU-4G
FREQU-LoraWan Frequency Plan EU868: Europe, switchable to IN865 US915: USA & Canada, switchable to AU915/KR920/AS923 AU915: Australia, switchable to US915/KR920/AS923 AS923: Asia, switchable to US915/KR920/AU923		4G - Connectivity 4G-EU: 4G European frequency 4G-US: 4G US frequency Leave it blank if 4G is not requested
Example 1: SATEVIS-IOT-GTW-IND-EU868-4G-EU, LoraWan 868MHz, 4G connectivity for Europe Example 2: SATEVIS-IOT-GTW-IND-EU915, LoraWan 915MHz

Download Resources

Technical & Product FAQ

Support

2 YEAR LIMITED WARRANTY

We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.

SUPPORT MANUAL

Do you need help with any of our SATEVIS® products ?

Contact our Technical Support >

LoraWan® protocol
Processor	MT7628(MIPS24KEc@580MHz), RAM DDR2 128MB, FLASH 32MB
LoraWan® chipset	SX1302 with 8 channels
LoraWan® protocol	V1.0.3 Class A/Class B/Class C
Frequency Plan	IN865/EU868/RU864/US915/AU915/KR920/AS923
Long Range Sensitivity	-125dBm @125KHz/SF7 -139dBm @125KHz/SF12
Long Range TX Power	Up to 26 dBm

4G Connectivity specifications (Optional)
4G Band	4G-EU : LTE-FDD: B1/B3/B7/B8/B20 LTE-TDD: B38/B40/B41 WCDMA: B1/B8 GSM: 900/1800MHz 4G-US : LTE-FDD: B2/B4/B5/B8/B12/B13/B14/B66/B71 WCDMA: B2/B4/B5 For more info, consult the List of LTE network available in your country : https://en.wikipedia.org/wiki/List_of_LTE_networks
4G Features	4G-EU : Support non-CA Cat 4 FDD and TDD LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL) LTE-TDD: Max 130Mbps (DL), Max 30Mbps (UL) 4G-US : Support non-CA Cat 4 FDD LTE-FDD: Max 150Mbps (DL), Max 50Mbps (UL)
UMTS Features	Support 3GPP R8 DC-HSDPA, HSPA+, HSDPA, HSUPA and WCDMA DC-HSDPA: Max 42Mbps (DL) HSUPA: Max 5.76Mbps (UL) WCDMA: Max 384Kbps (DL), Max 384Kbps (UL)

Environmental and Mechanical
Weight	300g
Dimension	143.6x135x34mm (connector not included) 150.6x135x34mm (connector included) Package: 34023065mm
Operating Temperature	-20°C to 55°C
Relative Humidity	0% - 85% (non-condensing)

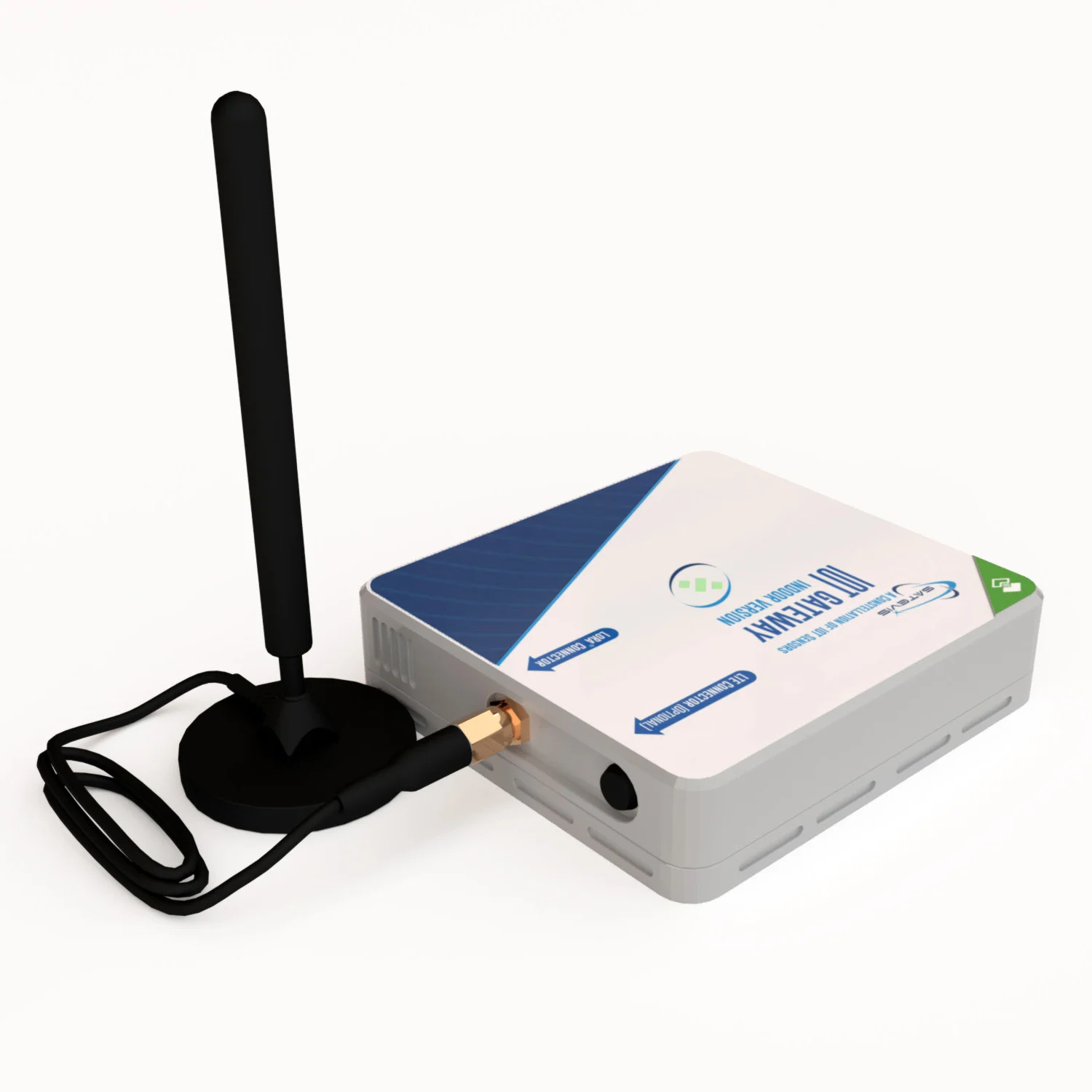

Interfaces	Ethernet RJ45 * 1 RP-SMA Female connector (for LoraWan Antenna) SMA male connector (for 4G Antenna)

Power Supply
Input Voltage		DC 12V - 2A PoE (IEEE 802.3 af), 40V-57V DC

Included Accessories
List of Included accessories	1 x 4G Antenna 5dBi (only for 4G version) 1 x LoraWan Antenna 5dBi with Magnet mounting 1x Wall-Mount Power Supply 1 x LAN cable 1.5 meters
