HI-INC-SR
LoRaWAN IOT Tri-Axis Inclinometer Sensor
Scalable Measuring Range (±10° and ±90°)
APPLICATIONS |
Land surveying |
Structural Health Monitoring |
Test and Measurement |

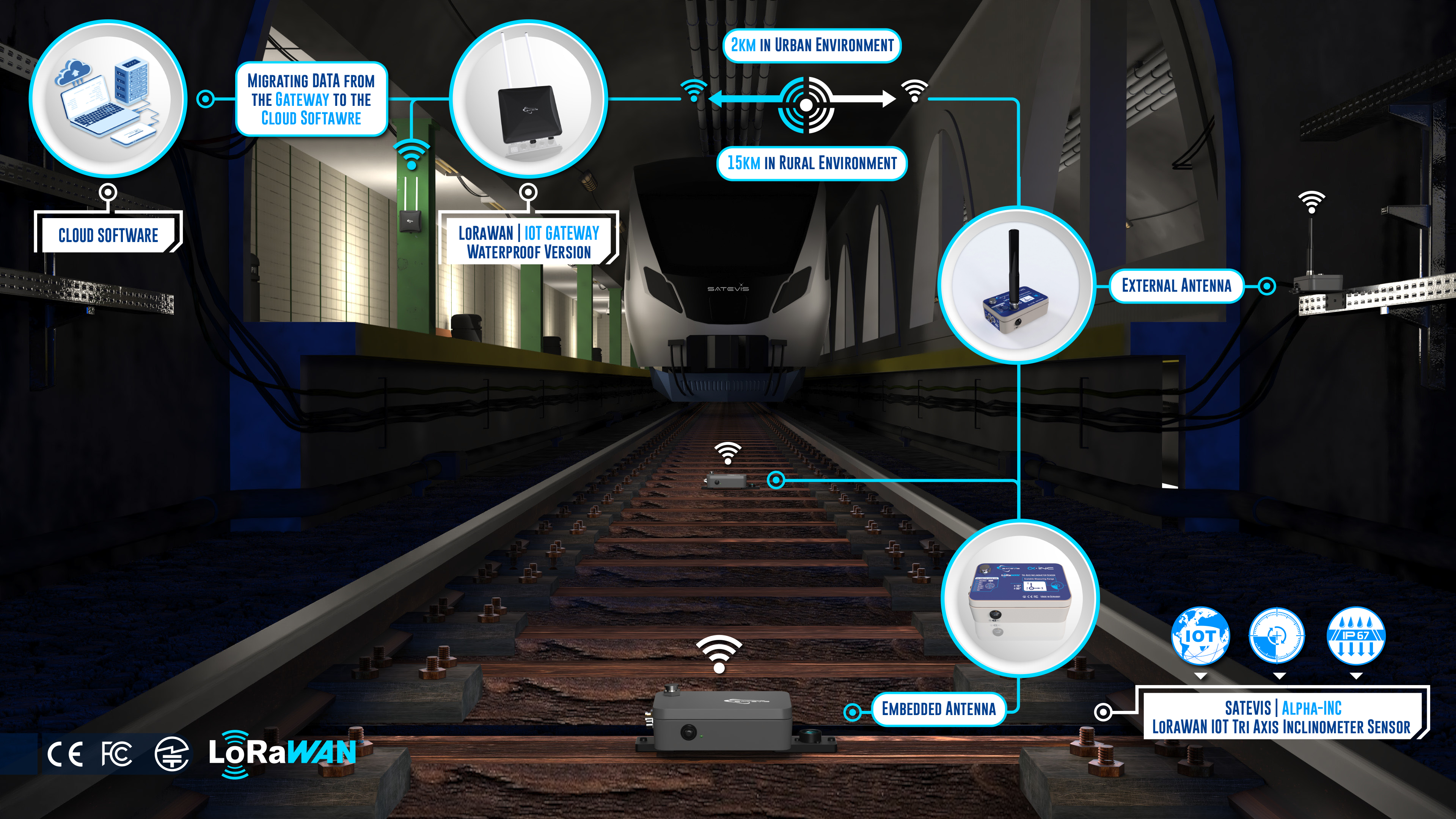

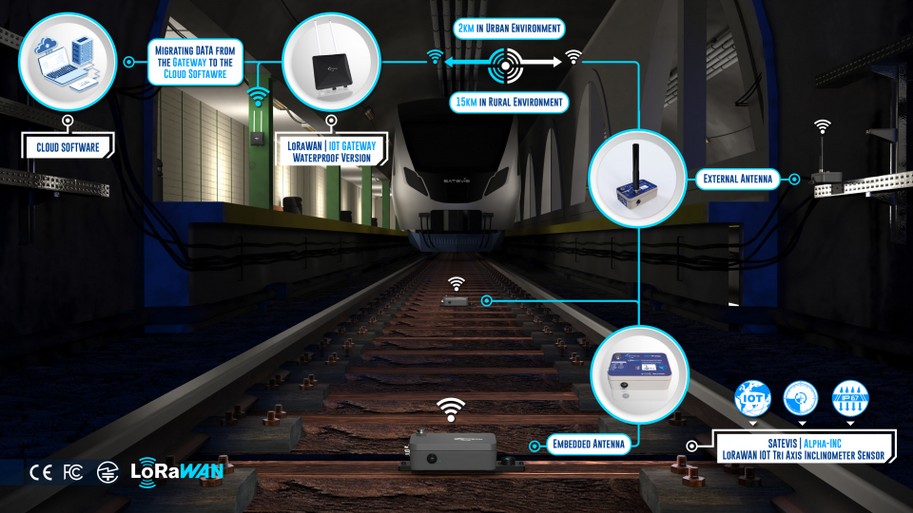

Railway Sleepers Monitoring |
free configuration software (USB interface)
Technical Specifications
PRODUCT REFERENCE | ||
SATEVIS-LORA-HI-INC-SR-MR-PS | ||
MR– Measurement Range: 10T : tri-axis ±10°/±90° | PS - Power supply : BP3S : Battery Pack with 3 Primary Cell in series (3 x 6.5Ah) | |
Example 1: SATEVIS-LORA-HI-INC-SR-10T-BP3S, Wireless Inclinometer with LoraWan connectivity, Tri-axis inclinometer with ±10°/±90° measurement range, Powered from Battery Pack 3S | ||
Sensor specifications | ||
Inclinometer technology | MEMS Technology | |
Scalable Measuring Range | user-seletctable range ±10° or ±90°, with automatic range adjustment depending on the application | |
Sensor resolution | 0.005° | |
Noise density | for ±10° range : 0.0007 °/√Hz on Y Axis, 0.008 °/√Hz on X, Z Axis for ±90° range : 0.0012 °/√Hz on all axis | |
Sensor precision (full scale, @ 25°C, Static Measurement Mode every 2s) | ±0.009° for ±10° measurement range ±0.018° for ±90° measurement range | |
Offset temperature dependency (temperature range –25°C to +85°C) | ±0.0008°/°C | |
Sensitivity temperature dependency (temperature range –25°C to +85°C) | ±0.1 % | |
Offset LifeTime Drift (@25°C) | ±0.08 ° | |
Sensor frequency Response (-3 dB) | DC to 10 Hz for ±10° measurement range DC to 40 Hz for ±90° measurement range | |
Calibration | Factory calibrated for ±10° range and ±90° with calibration settings backed up on the sensor Flash memory. Calibration method used : Back-to-back calibrated with a reference sensor. Sensors can be re-calibrated by the user. | |
Sensor Zeroing function | Sensor zeroing can be done after Satevis Sensor installation. User need to hold a magnet on the label " sensor zeroing" for approx. 2s, zero-offset is adjusted on the sensor axis perependicular to earth gravity | |
Integrated Temperature sensor | ||
Temperature Range | -40°C to +75°C | |
Measurement resolution | ±0.06°C | |
Sensor Precision | ±1°C | |
Configurable settings from cloud software | ||
Javascript formatter code | Free Javascript fromatter code to accelerate the integration of Satevis sensors in your own cloud software : - Downlink formatter code (Alarm Threshold, Measurement mode….) - Uplink formatter code(Data measurement) | |
Data Acquisition mode | Different measurement mode are available: Low Duty Cycle Data Acquisition (LDCDA), Measurement heartbeat 10s to 24 hour Alarm measurement mode, Measurement heartbeat 10s to 24 hour | |
Alarm Threshold | Three levels of Alarm Threshold Alert < Action < Alarm | |
Scalable Mesurement Range | ±10° , ±90° and automatic ±10°/±90° | |
Satevis Sensor configurator (from USB) | ||
Configuration | Frequency Plan, Device EUID, AppEUI, AppKey | |
Firmware Upgrade | Firmware upgrade through the USB | |
Sensor calibration | Calibrations Points setup and Quick calibration | |
Power supply | ||
Integrated battery pack | Non-Rechargeable Battery Pack 3S - Lithium Thionyl Chloride Capacity 6.5Ah , Max Voltage 10.8Volts | |
Current consumption @ 3,3V | · During data acquisition : 20 to 30 mA · During Radio transmission : 80 mA @ 22 dBm · During Battery Saver Mode : < 30 µA | |
External power supply | USB Power 5VDC. When the device is powered from USB, the internal battery pack is disconnected from the power path. | |
RF Specifications | ||
LoraWan Stack | MACV1.0.2 | |
Activation Mode | OTAA | |
LoraWan Frequency Plan | Frequency Plan can be configured from USB: - Europe 868MHz - USA: 915MHz - China 779MHz - Australia 915MHz - Asia 923MHZ - Korea 920MHz - India 865Mhz | |
TX Power | 22dBm @868/915MHz | |
Receiver Sensitivity | -136.5dBm sensitivity for SF12 with 125KHz BW | |
Link Budget | 158dB | |
Maximum Radio Range | - 15 Km in L.O.S. / Rural Environment - 2Km in NLOS/ Urban Environment | |
Antenna | Waterproof N-Type Antenna, Gain 1.08 dBi (868 MHz)/1.15dBi (915MHz)/0.93dBi (920MHz), VSWR 1.64 (864~923MHz) | |
Included accessories | ||
1x Magnet for Zero-Offset | ||
1x M8 Cap for Power Supply | ||
Optional Accessories and Services | ||
Magnetic Mounting | Magnetic Mounting Kit Ref: SAT-MAG-MNT | |
90° Bracket Mounting | 90° Bracket mounting (with integrated eyelet) with 4 x M5 screws + Locknut Ref: SAT-BRACK-MNT | |
External Sensors | External Temperature and Humidity Sensor | |
Calibration certificate | Calibration certificate provided by Satevis A static calibration method is used on a granite surface plate DIN876 Ref: CERT-SATEVIS-INCLINOMETER | |
Optional External Sensors | ||
Temperature and HumIdity sensor | Ref: SAT-EXT-SENS-TH | |
Industrial Pressure sensor | Ref: SAT-EXT-SENS-PRESS | |
Industrial Water Level Sensor | Ref: SAT-EXT-WATER-LEVEL | |
Battery Life with for different measurement mode | ||
Measurement Cycle every minute | ||
Measurement Cycle every 5 minutes | ||
Measurement Cycle every hour | ||
Measurement Cycle every 4 hours | ||
Environmental and Mechanical | ||
Casing | Plastic ABS & Waterpoof casing Dimensions in mm (LxWxH): 100x55x36 mm Weight : 450g | |
IP | NEMA Rating | IP67 | Nema 6 | |
Shock resistance | 100g during 50 ms | |
Operating Temperature | with Internal Battery Pack -40°C to +60°C with USB Power -20°C to +75°C | |
Norms & Radio certifications | · CE Labelling Directive R&TTE (Radio) ETSI EN 300 328 · FCC (North America) · ARIB STD-T66 Ver 3.6 ROHS - Directive 2002/95/EC | |
