SATEVIS® ALPHA-INC
Wireless IOT Tri-Axis Inclinometer ( LoRaWAN® protocol)
Scalable Measuring Range (±10° and ±85°)

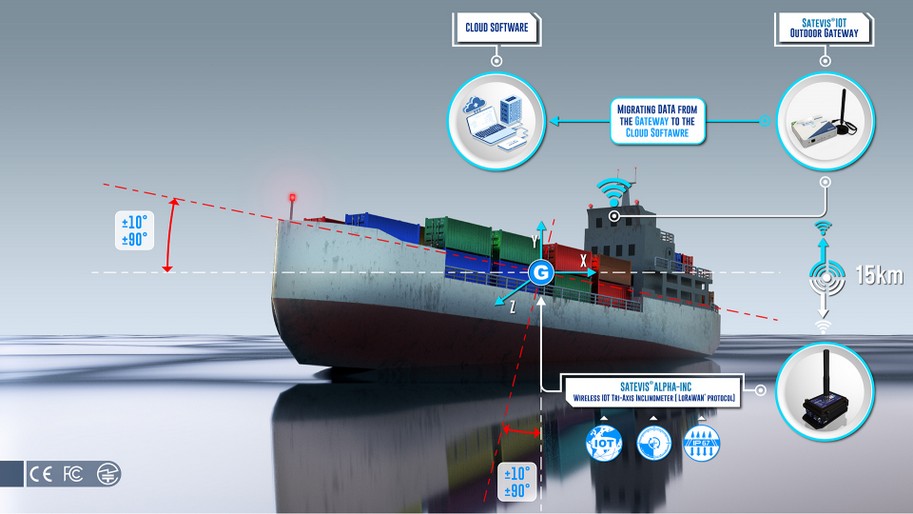

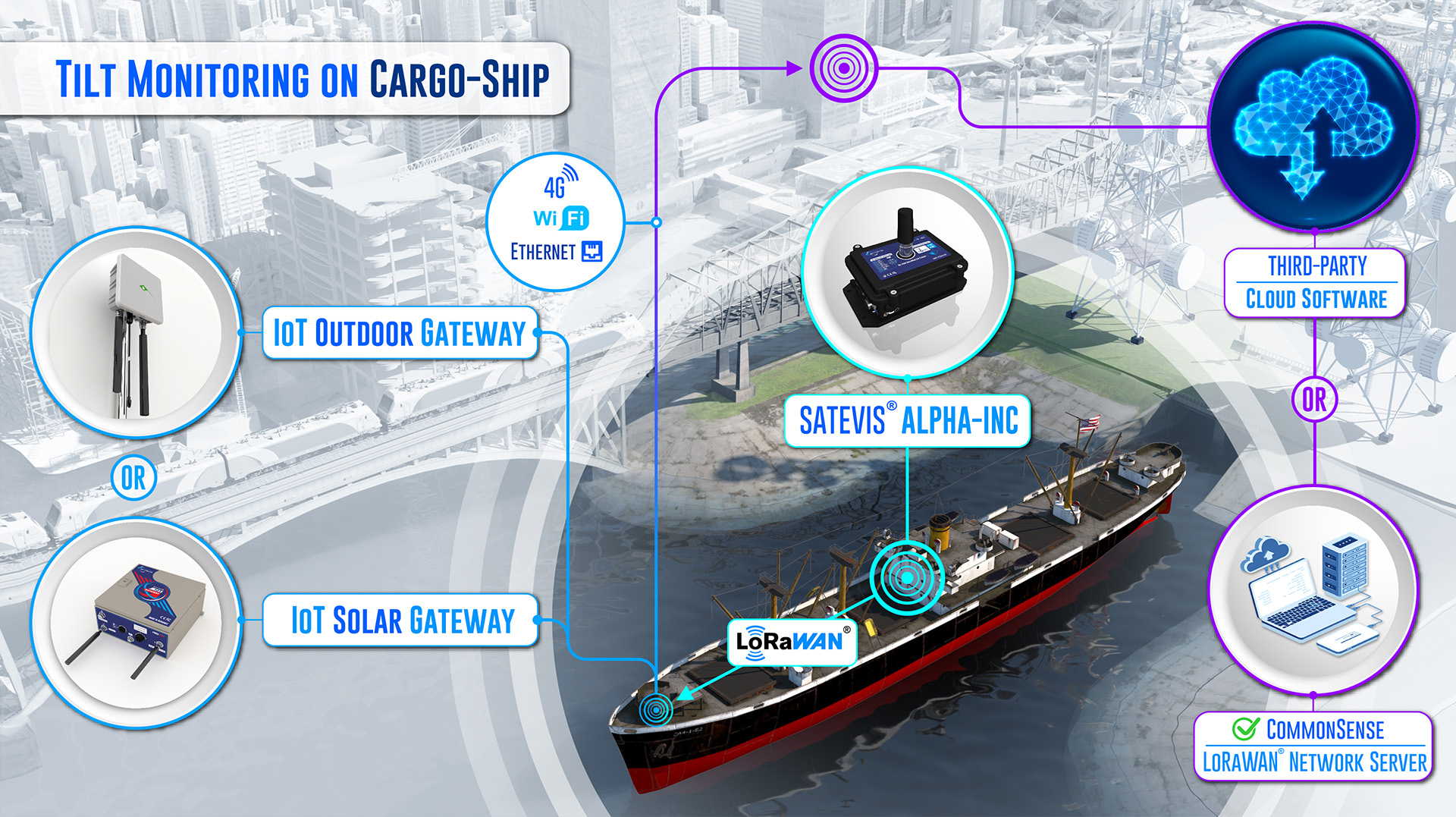

APPLICATIONS
Land surveying

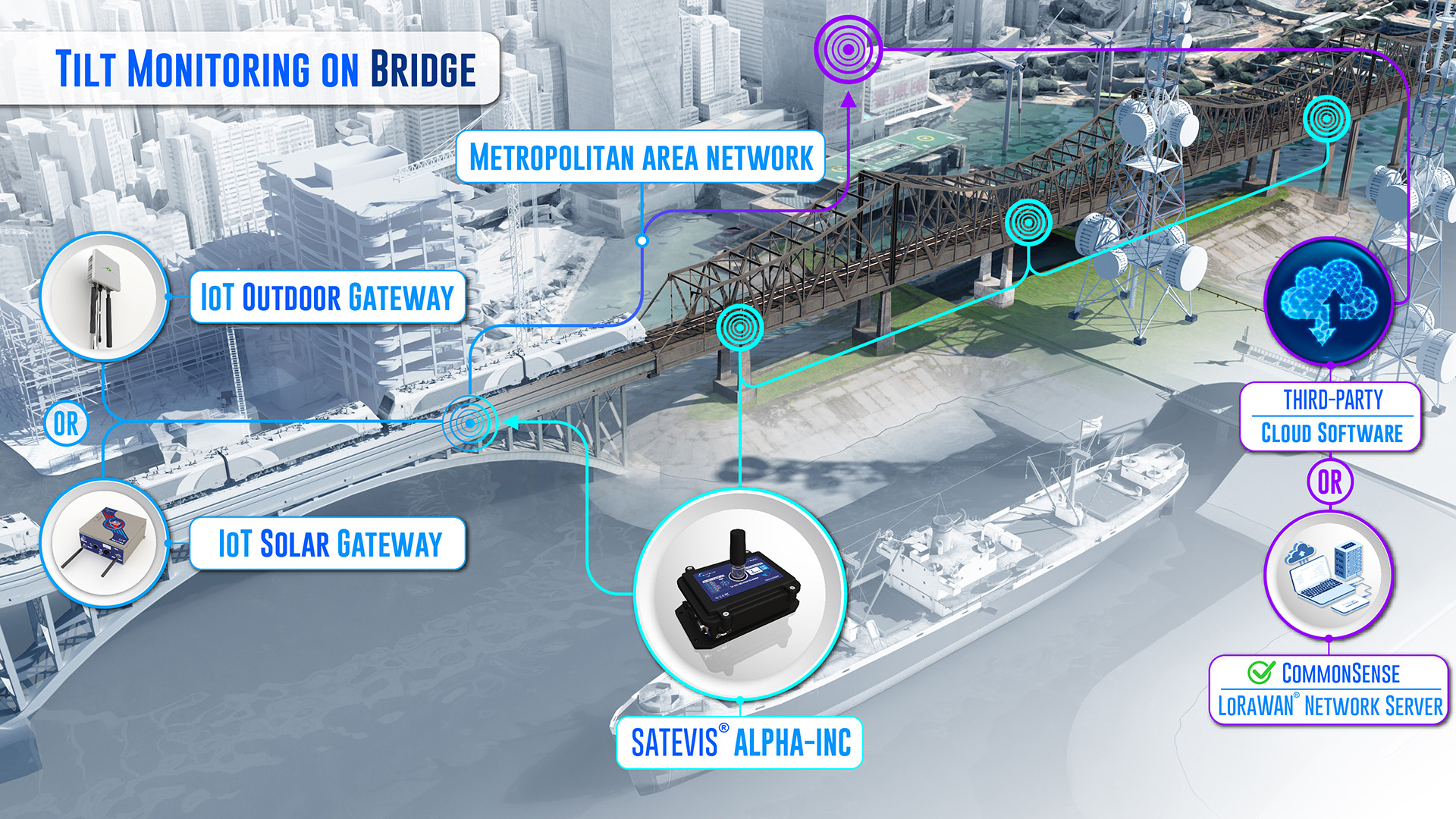

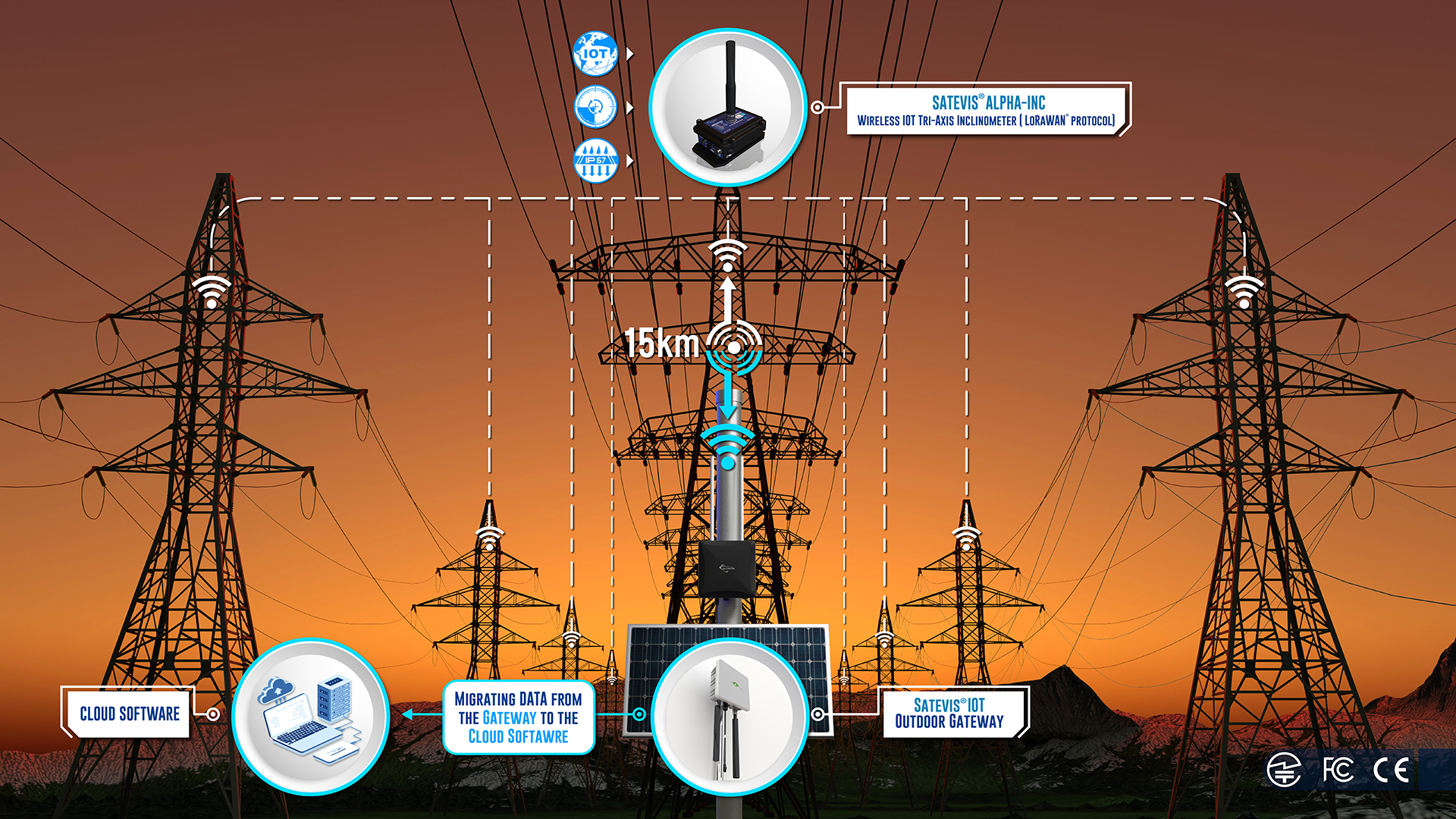

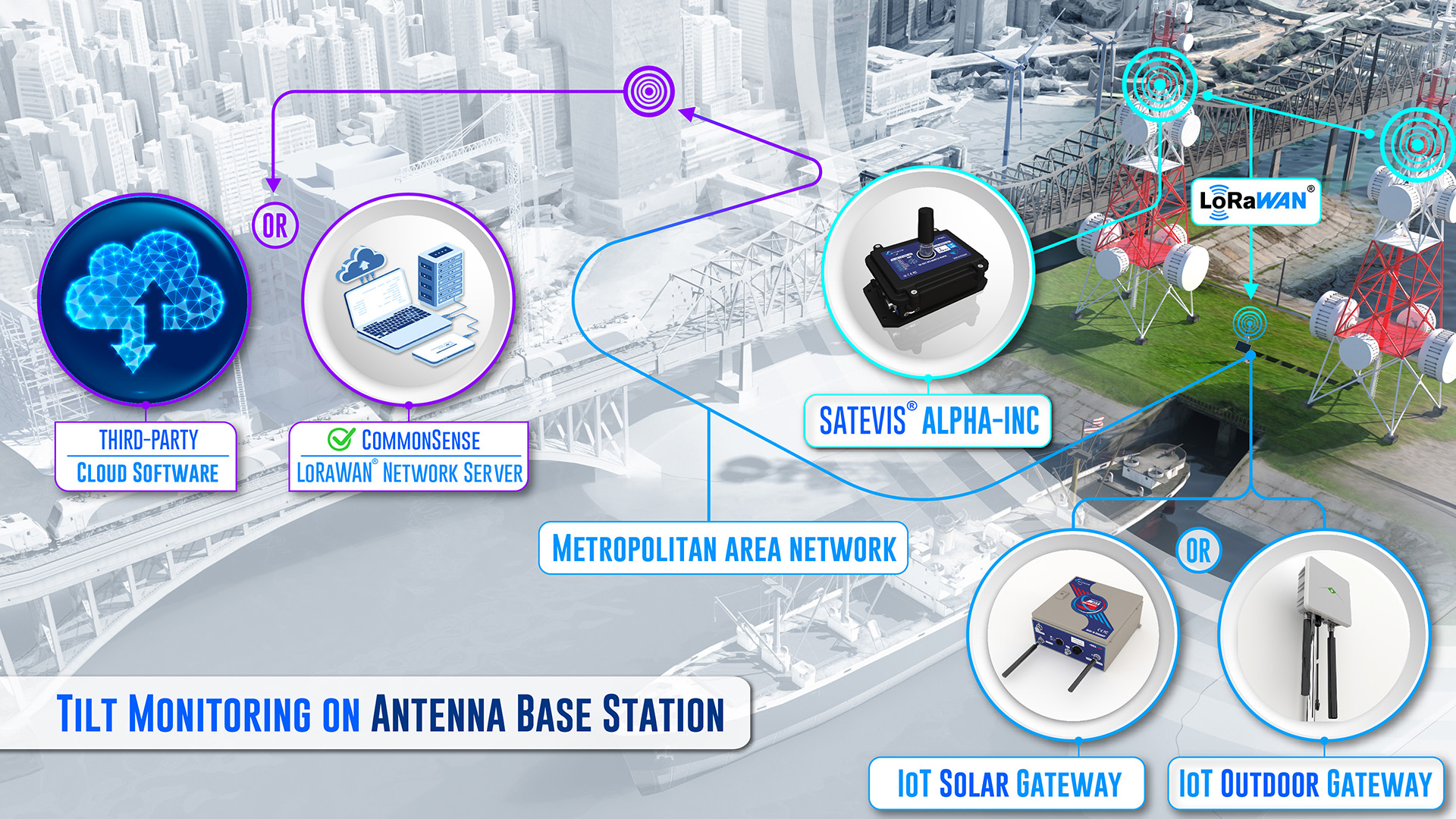

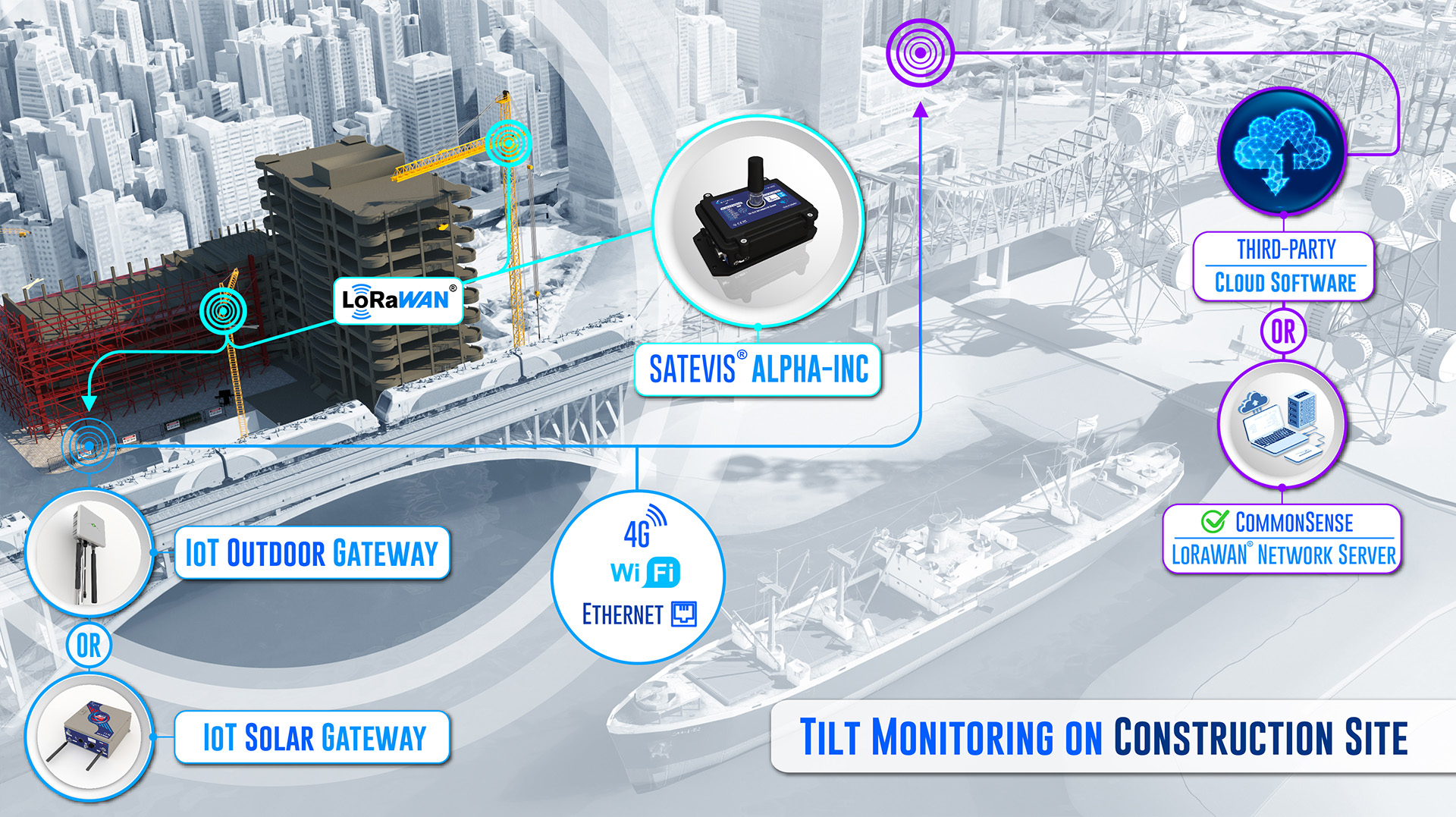

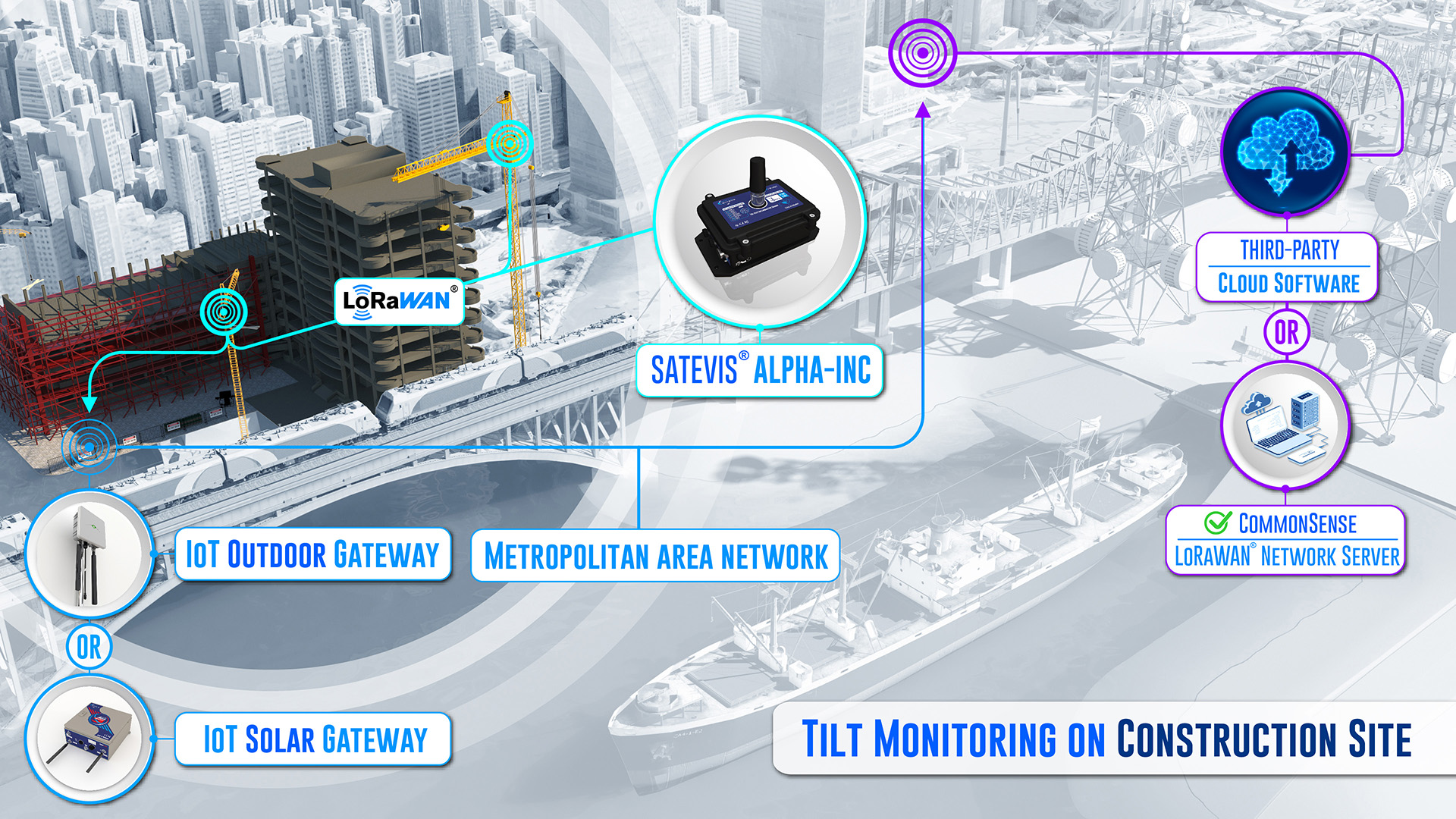

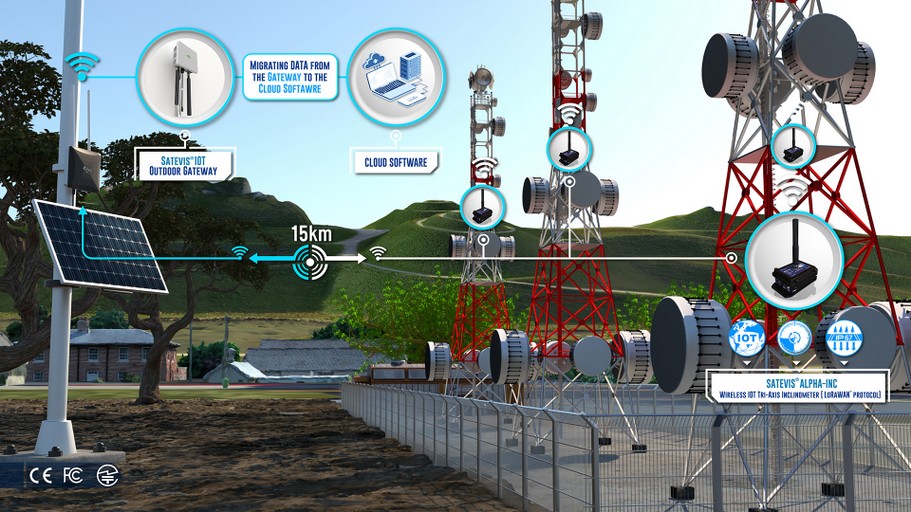

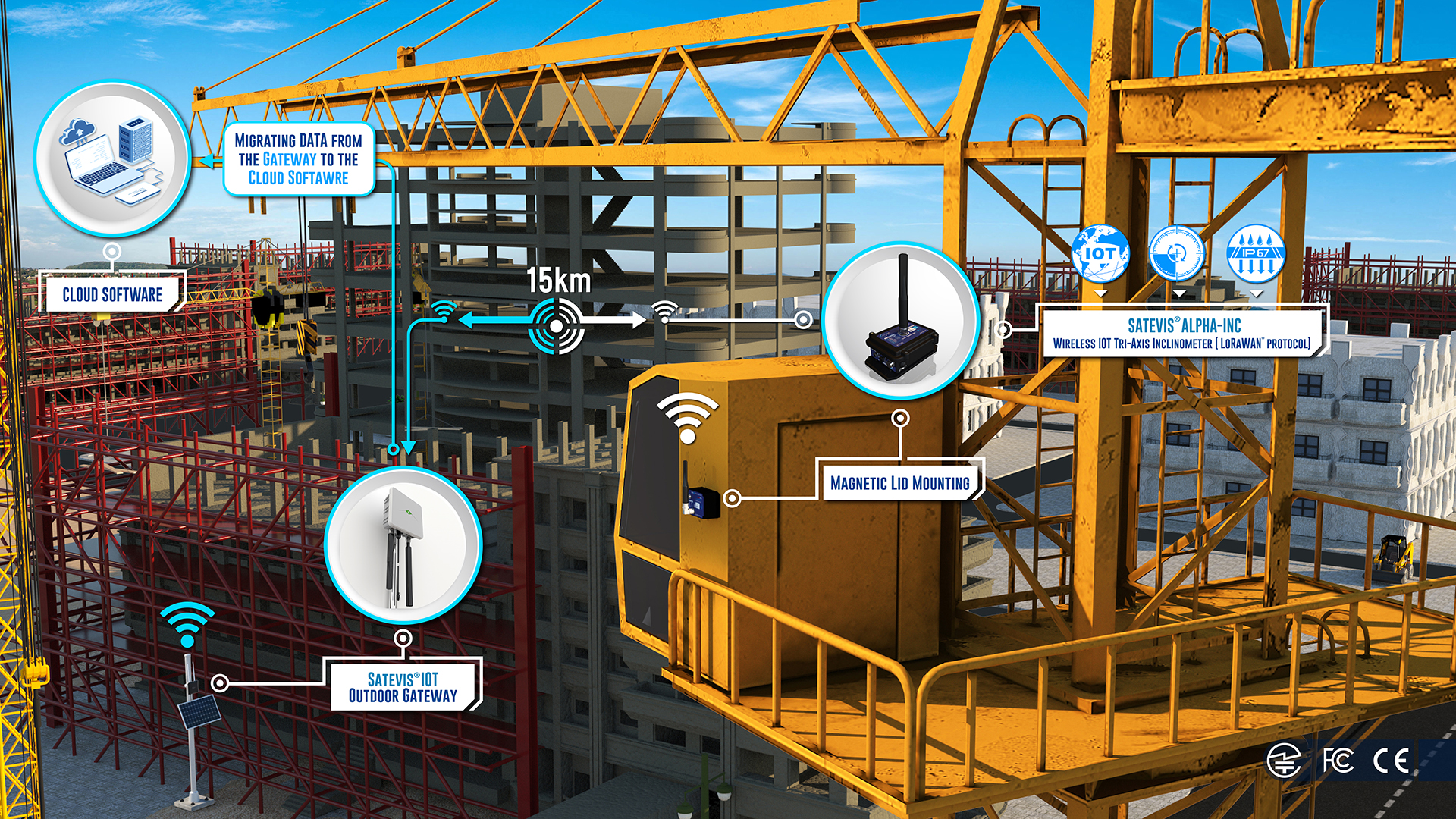

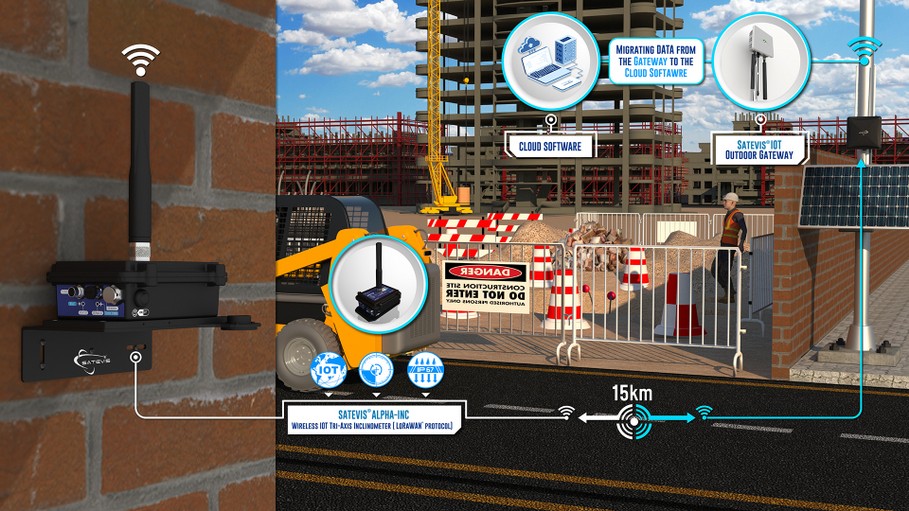

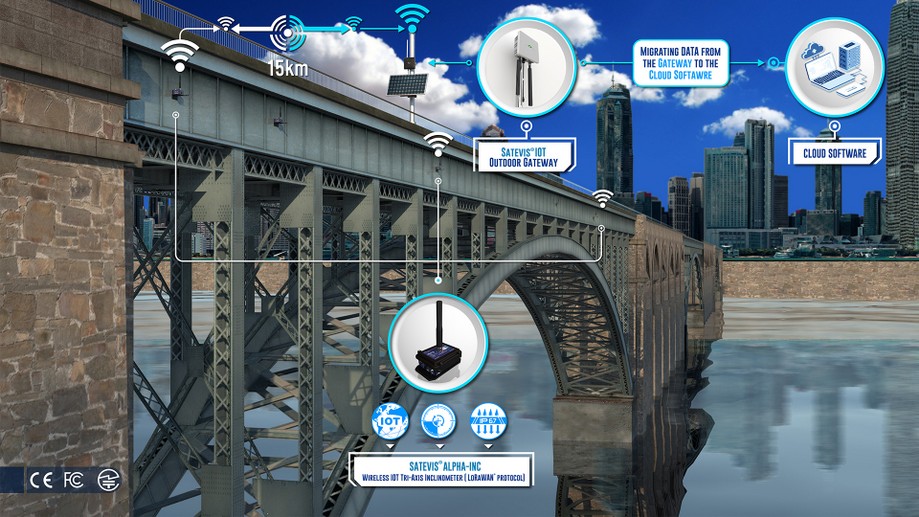

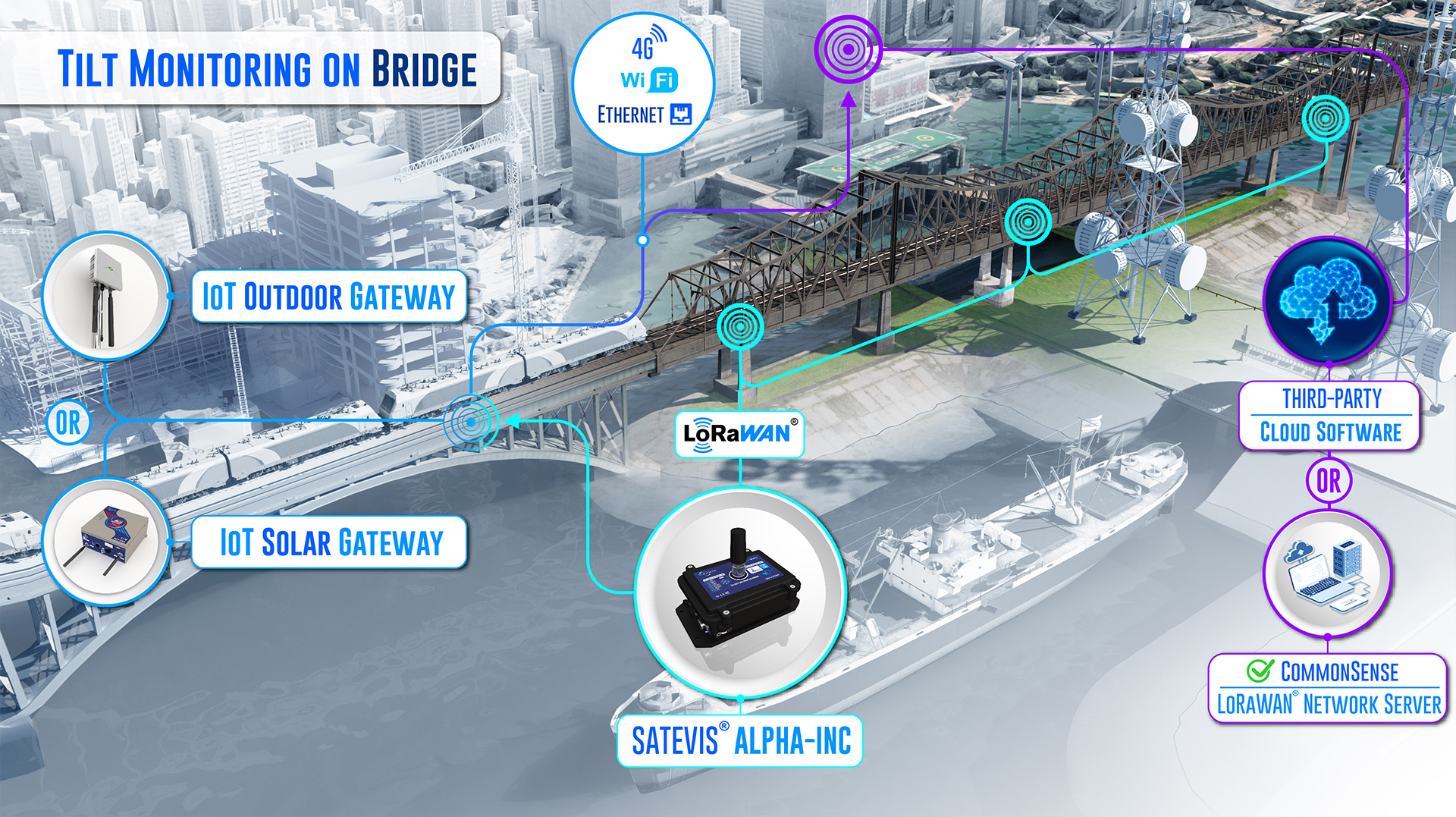

Structural Health Monitoring
Test and Measurement

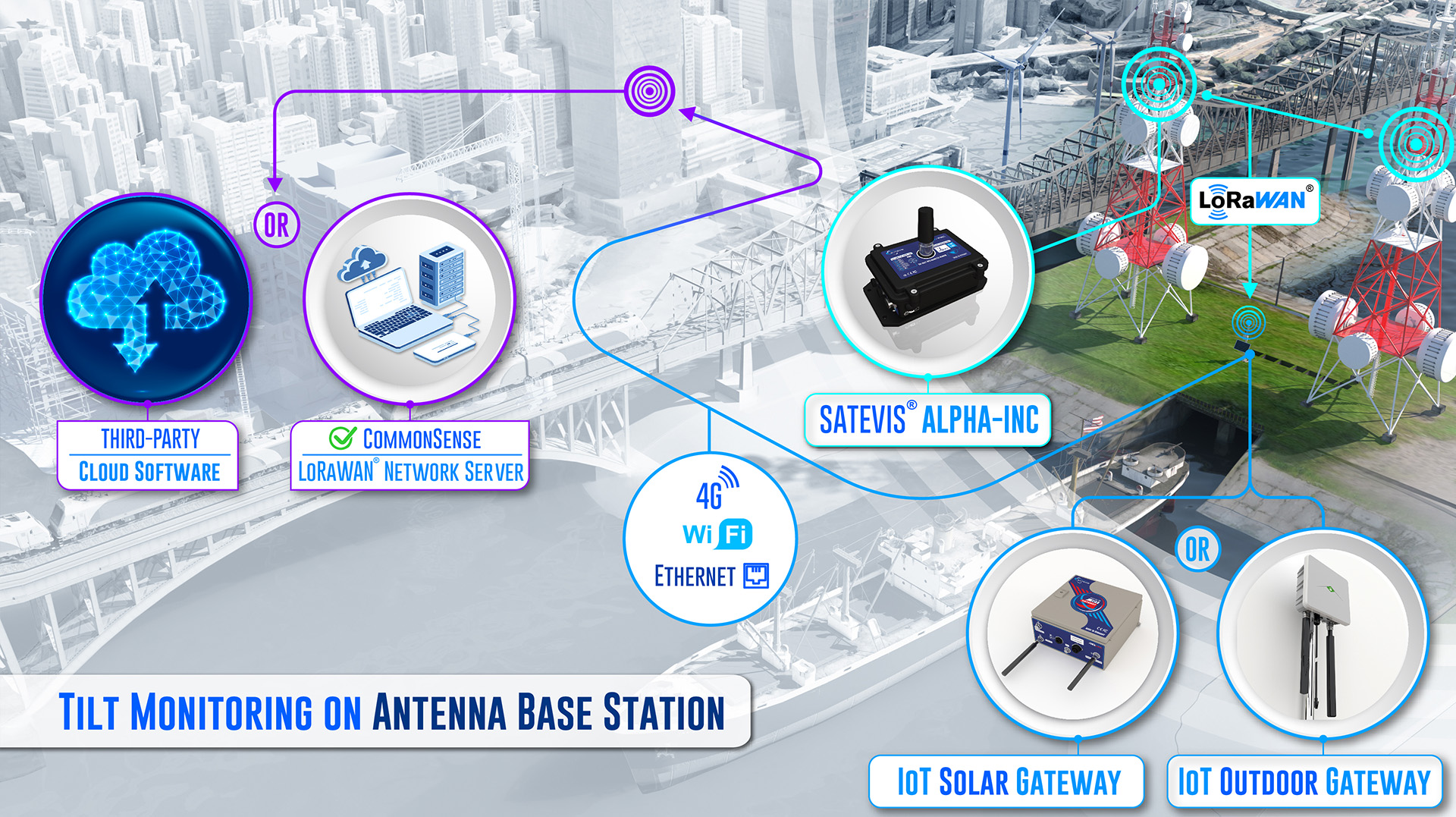

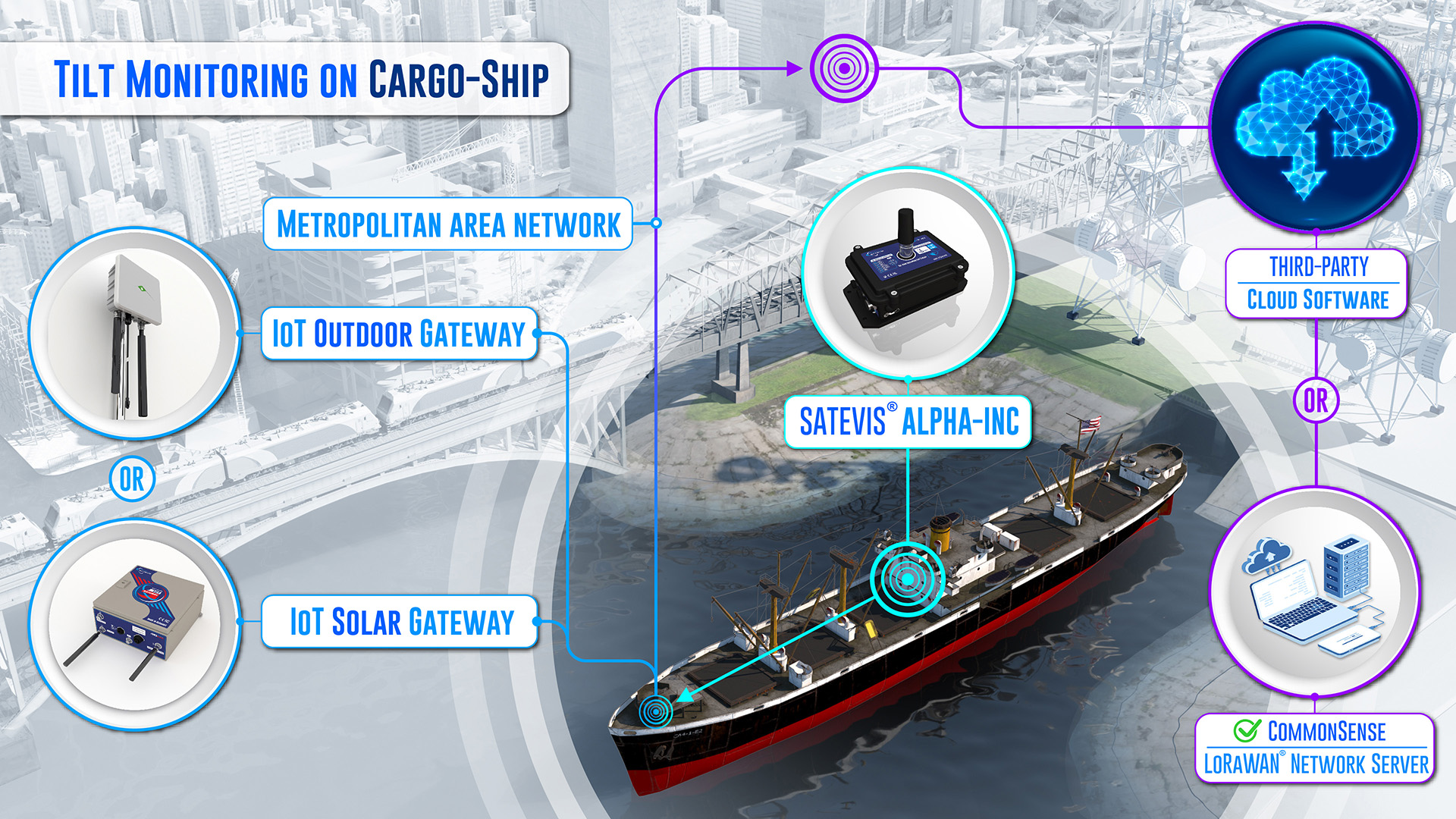

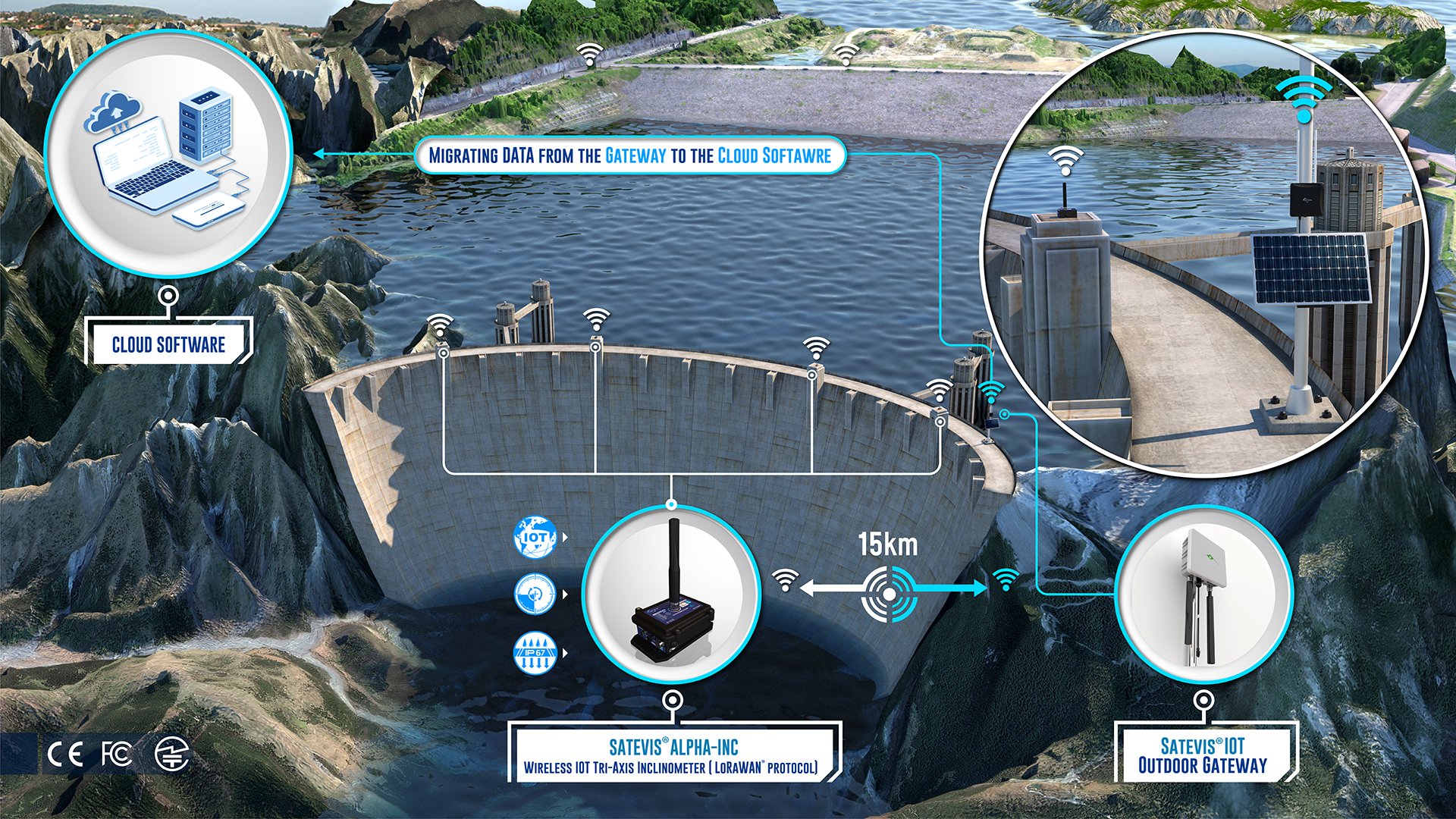

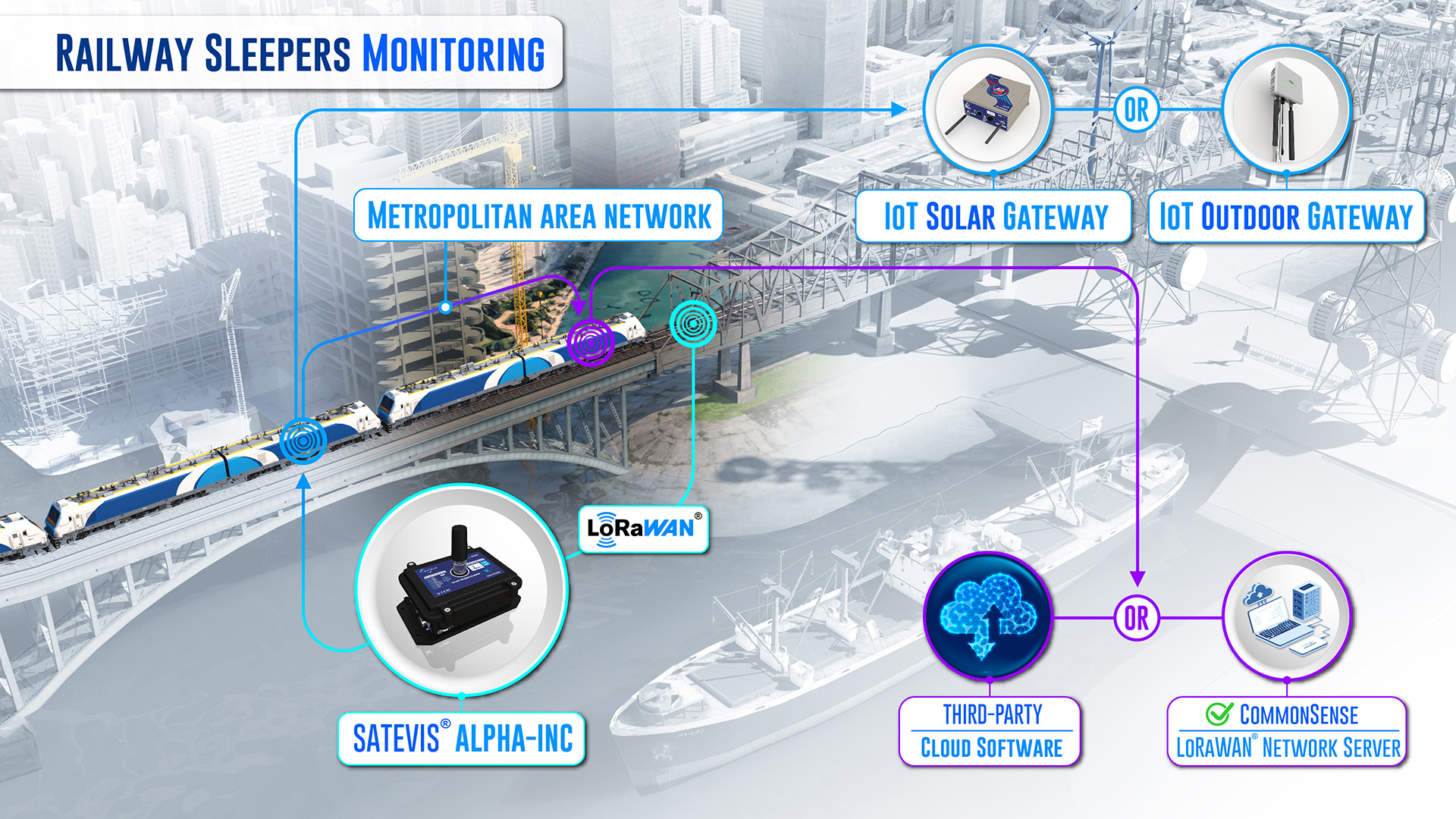

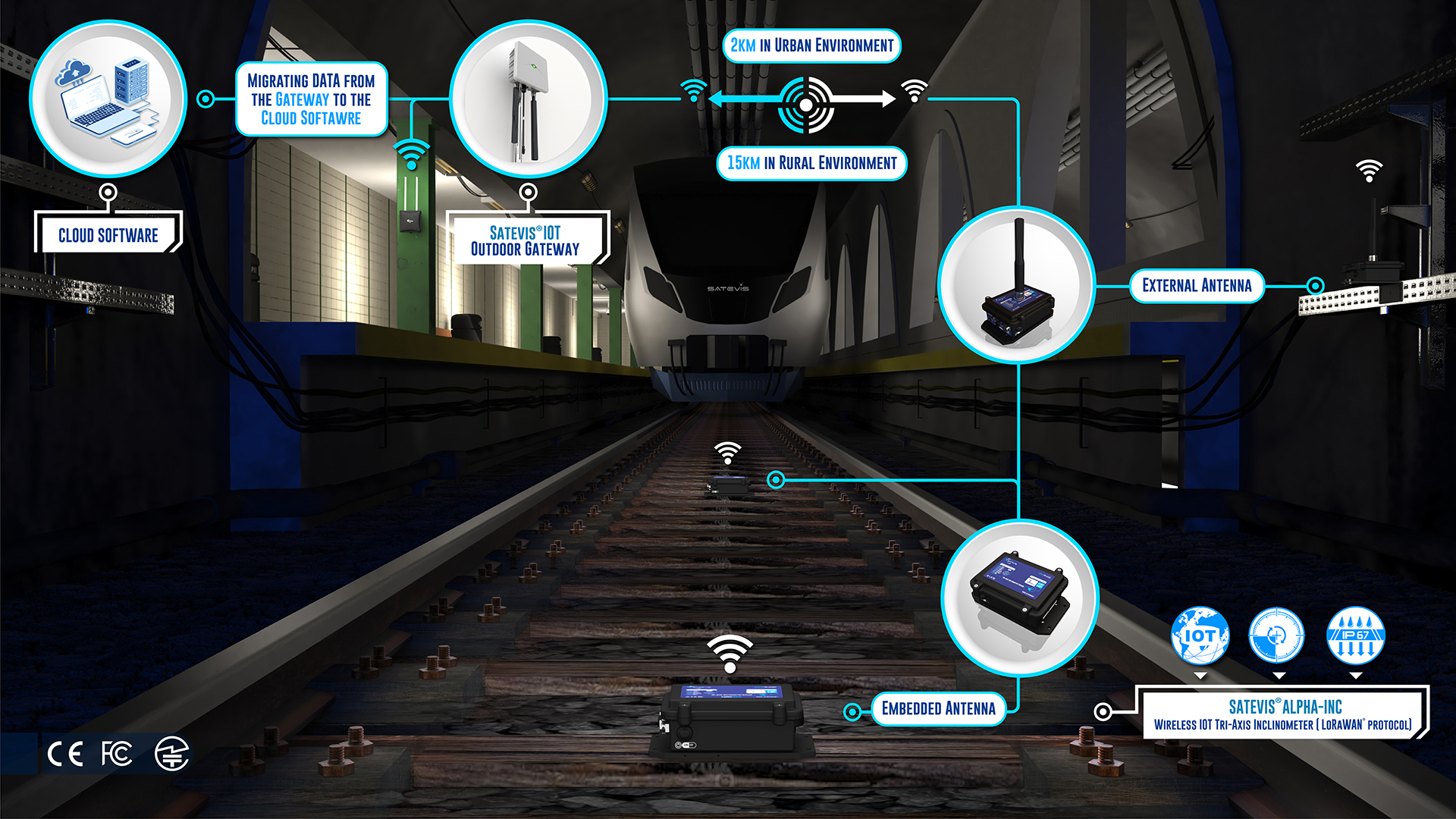

Railway Sleepers Monitoring
free configuration software (USB interface)
Technical Specifications
«Blue line »
PRODUCT REFERENCE
  SATEVIS-LORA-ALPHA-INC-MR-PS-RP-AG
MR– Measurement Range:
10T : tri-axis ±10°/±85°
PS - Power supply :
BP3S : Battery Pack with 3 Primary Cell in series (3 x 6.5Ah, 3S1P configuration) - Non Rechargeable battery pack
Radio Power
HP - High Power Transmission +22dBm
LP- Low Power Transmission +14dBm
AG - Antenna Gain
AG-2dBi-868: 2dBi Antenna for  EU/IND Regions (Europe /India)
AG-5dBi-868: 5dBi Antenna for  EU/IND Regions (Europe /India)
AG-2dBi-915: 2dBi Antenna for  US/KR/AS/AU Regions (USA/KOREA/ASIA/AUSTRALIA)
AG-5dBi-915: 5dBi Antenna for  US/KR/AS/AU Regions (USA/KOREA/ASIA/AUSTRALIA)
Example 1: SATEVIS-LORA-ALPHA-INC-10T-BP3S-LP-AG-2dBi-868
Wireless Tri-axis Inclinometer ±10°/±85° with LoraWan connectivity, Powered from Battery Pack 3S, Low Power Radio +14dBm,  2dBi Antenna 868Mhz
Example 2: SATEVIS-LORA-ALPHA-INC-10T-BP3S-HP-AG-5dBi-915
Wireless Tri-axis Inclinometer ±10°/±85° with LoraWan connectivity, Powered from Battery Pack 3S, High Power Radio +22dBm, 5dBi Antenna 915MHz
iNCLINOMETER SensoR
Inclinometer technology
MEMS Technology
Scalable Measuring Range
user-seletctable range ±10° or ±85°, with  automatic range adjustment depending on the application
Sensor resolution
0.0055° on full scale
Noise density
for ±10° range : 0.0007 °/√Hz on Y Axis, 0.008 °/√Hz on X, Z Axis
for ±85° range : 0.0012 °/√Hz on all axis
Sensor Precision/Repeatability ( full scale, 25°C)
±0.01° for  ±10° measurement range
±0.02° for  ±85° measurement range
Sensor Accuracy (full scale, @ 25°C )
±0.015° for ±10°  range
±0.02° for ±45° range
±0.04° outside ±45° range
Offset temperature dependency (temperature range –25°C to +85°C)
±0.006°/°C
Offset LifeTime Drift (@25°C)
±0.08 °
Sensor frequency Response (-3 dB)
DC to 10 Hz for  ±10° measurement range
DC to 40 Hz for  ±85° measurement range
Calibration
Factory calibrated on 9 references point :
0° absolute, ±5° ,±10°, ±30° and ±45° with calibration settings backed up on the sensor Flash memory.
Calibration method used : Back-to-back calibration with an accurate reference sensor.

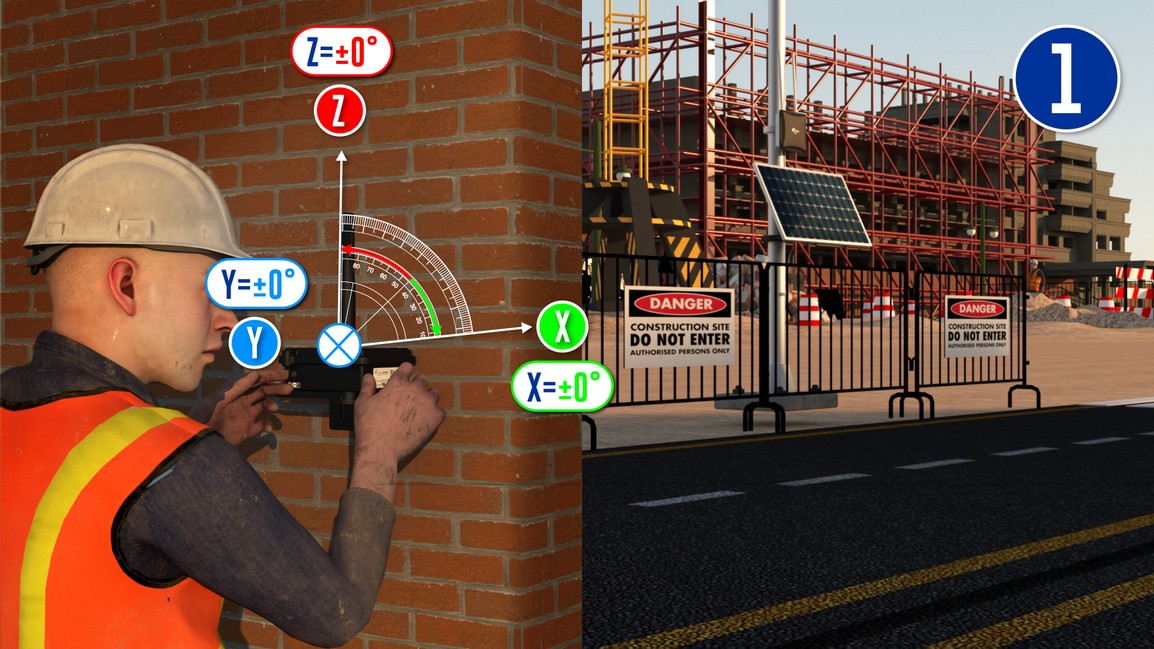

Sensor Zeroing function

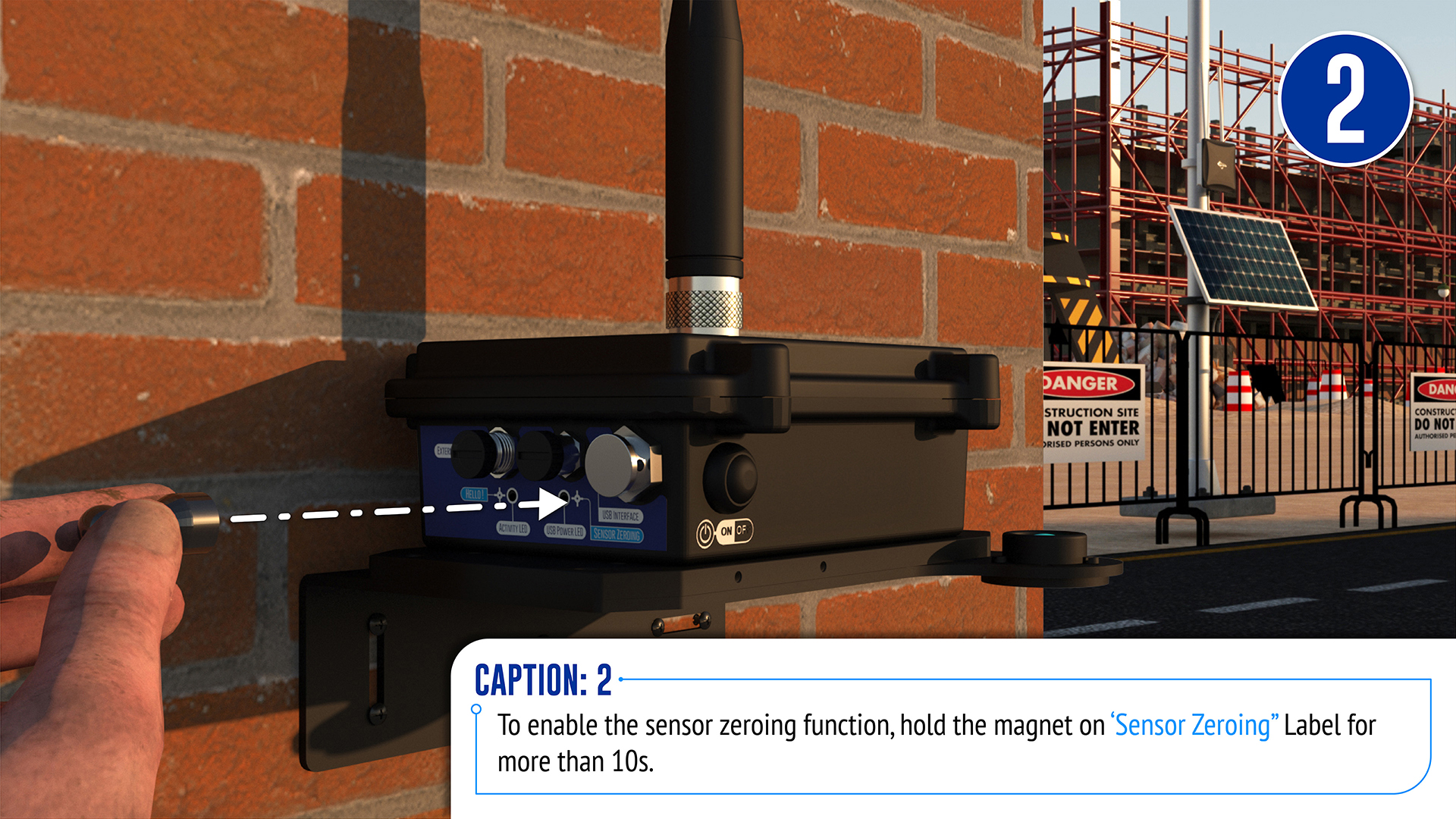

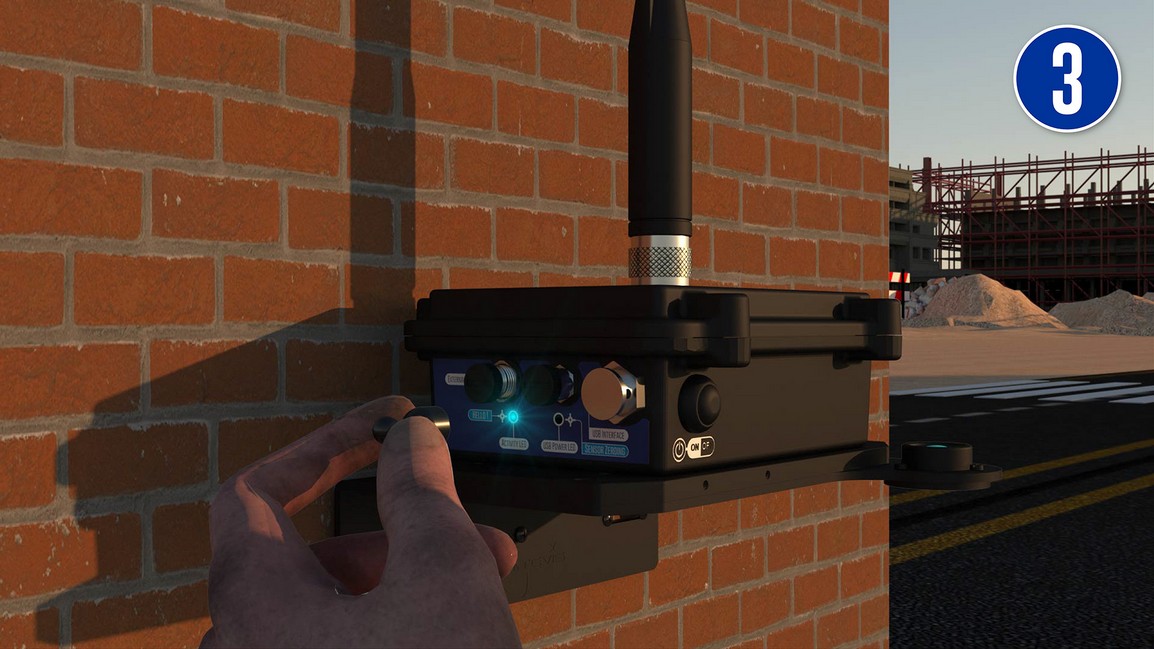

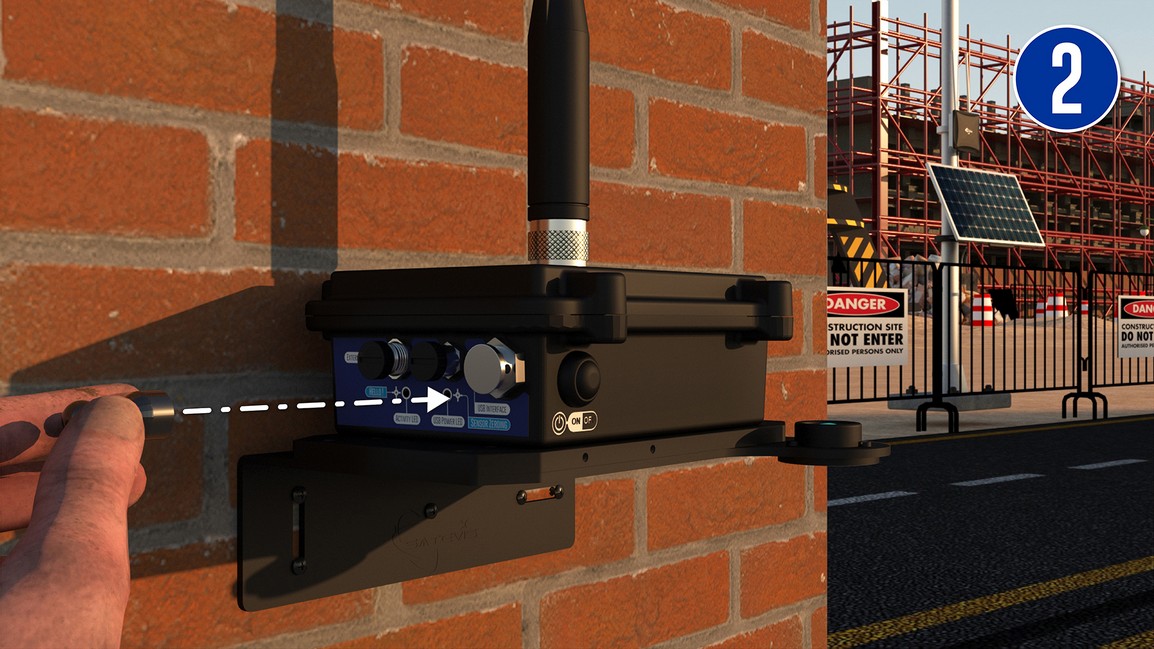

Sensor zeroing can be done after Satevis Sensor installation. User need to  hold a magnet on the label " sensor zeroing" for approx. 10s, zero-offset is the performed on all sensor axis X/Y/Z.
Integrated Temperature sensor
Temperature Range
-40°C to +75°C
Measurement resolution
±0.06°C
Sensor Precision
±1°C
Configurable settings from cloud software
Javascript formatter code
Free Javascript fromatter code to accelerate the integration of Satevis sensors in your own cloud software :
- Downlink formatter code (Alarm Threshold, Measurement mode….)
- Uplink formatter code(Data measurement)
Data Acquisition mode
Different measurement mode are available:
Low Duty Cycle Data Acquisition (LDCDA), Measurement heartbeat 20s to 24   hour
Alarm measurement mode, Measurement heartbeat 10s to 24 hour
Alarm Threshold
Three levels of Alarm Threshold  Minor Alarm / Severe Alarm / Critical Alarm
Scalable Mesurement Range
±10°, ±85° and automatic ±10°/±85°
Satevis Sensor Configurator (from USB)
Configuration
Frequency Plan, Device EUI, AppEUI, AppKey
Firmware Upgrade
Firmware upgrade through the USB
Sensor calibration
Calibrations Points setup and Quick calibration
Power supply
Integrated battery pack
Non-Rechargeable Battery Pack (3S1P configuration) - Lithium Thionyl Chloride Capacity 6.5Ah , Max Voltage 10.8Volts
Current consumption @ 3,3V
· During data acquisition : 15 to 20 mA
· During Radio transmission : 80 mA for +22 dBm , 35 mA for +14dBm
· During Battery Saver Mode : < 15 µA
External power supply
USB Power 5VDC. When the device is powered from USB, the internal battery pack is disconnected from the power path.
DataLogger/Recorder
Datalogger Size
If 4 sensors Channels ( Tri-Axis Inclinometer, 1 Internal Temperature) :
380 000 Log sessions per sensor channel
If 6 sensors Channels ( Example: Tri-Axis Inclinometer, 1 Internal Temperature, External Temperature, External Humidity) :
246 000 Log sessions per sensor channel
Logged Information
UTC Clock
Data Measurement
Monitoring Mode
Remote configuration from LNS
DataLogger Start/Stop/Erase
Download Method
From USB with Hypeterminal Software, CSV format
RF Specifications
LoRaWAN® Stack
LORAWAN V1.0.2 REVB CLASS A
Activation Mode
OTAA
LoRaWAN® Frequency Plan
Frequency Plan can be configured from USB:
✓ Europe 868MHz
✓ USA: 915MHz
✓ Australia 915MHz
✓ Asia 923MHZ
✓ Korea 920MHz
✓ India 865Mhz

Important : Depending on the destination region, Satevis Device will be delivered with Antenna for 868MHZ Frequecies ( Europe/India), or 915MH frequencies (USA/KOREA/ASIA/Ausrtalia)
TX Power
HP - High Power Transmission +22dBm
LP- Low Power Ttransmission +14dBm
Receiver Sensitivity
-136.5dBm sensitivity for SF12 with 125KHz BW
Link Budget
158dB
Maximum Radio Range
- 15 Km in L.O.S. / Rural Environment
- 2Km in NLOS/ Urban Environment
Antenna
Waterproof N-Type Omni Antenna,
Gain 5 dBi or 2dBi / VSWR  ≤   2.0
Frequency range for AG-2dBi-868  and   AG-5dBi-868 : 863-870 MHz
Frequency range for AG-2dBi-915  and   AG-5dBi-915 : 902-928 MHz
Dimensions ⌀22 x 64 mm for 2dBi
Dimensions ⌀22 x 180 mm for 5dBi
Included accessories
1 x Battey Pack 3 x C-Size Cell - 6,5Ah (3S1P configuration)
1x Magnet for Sensor-Zeroing & Hello functions
2x M8 Cap for Power Supply & external optional sensor
1 x USB to M8 cable adapter, 2 meters length
1 x Self-amalgamating tape (25cm length)
1 x LoRaWAN® Antenna ( see antenna options on reference builder)
1x Button Shield
Optional Accessories and Services
90° Bracket Mounting
90° Bracket mounting (with integrated eyelet) with 4 x M5 screws + Locknut
Ref: SAT-BRACK-MNT
External Sensors
External Temperature and Humidity Sensor
Calibration certificate
Calibration certificate provided by Satevis
A static calibration method is used on a granite surface plate DIN876 Ref: CERT-SATEVIS-INCLINOMETER
Optional External Sensors
Temperature and HumIdity sensor
Ref: B-TH-01-150-M8
Industrial Pressure sensor
Ref. SAT-EXT-TIR(available Q1-2025)
Industrial Water Level Sensor
Ref: SAT-EXT-WATER-LEVEL (available Q2-2025)
Available functions
ON/OFF
Mechanical latching Push button

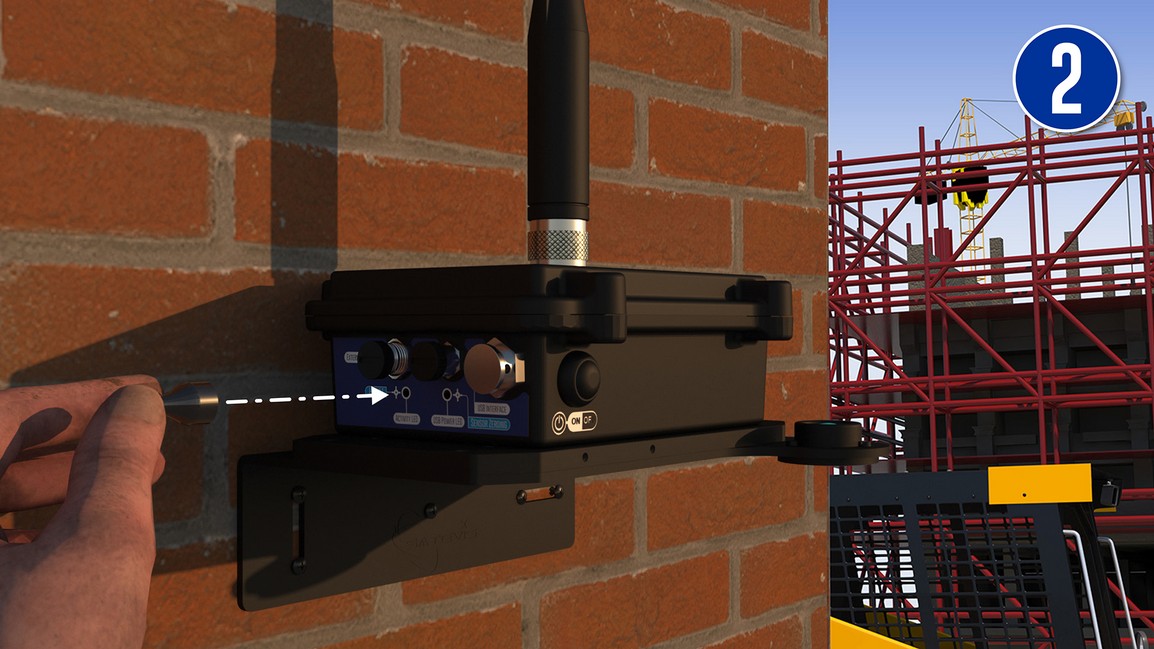

Hello

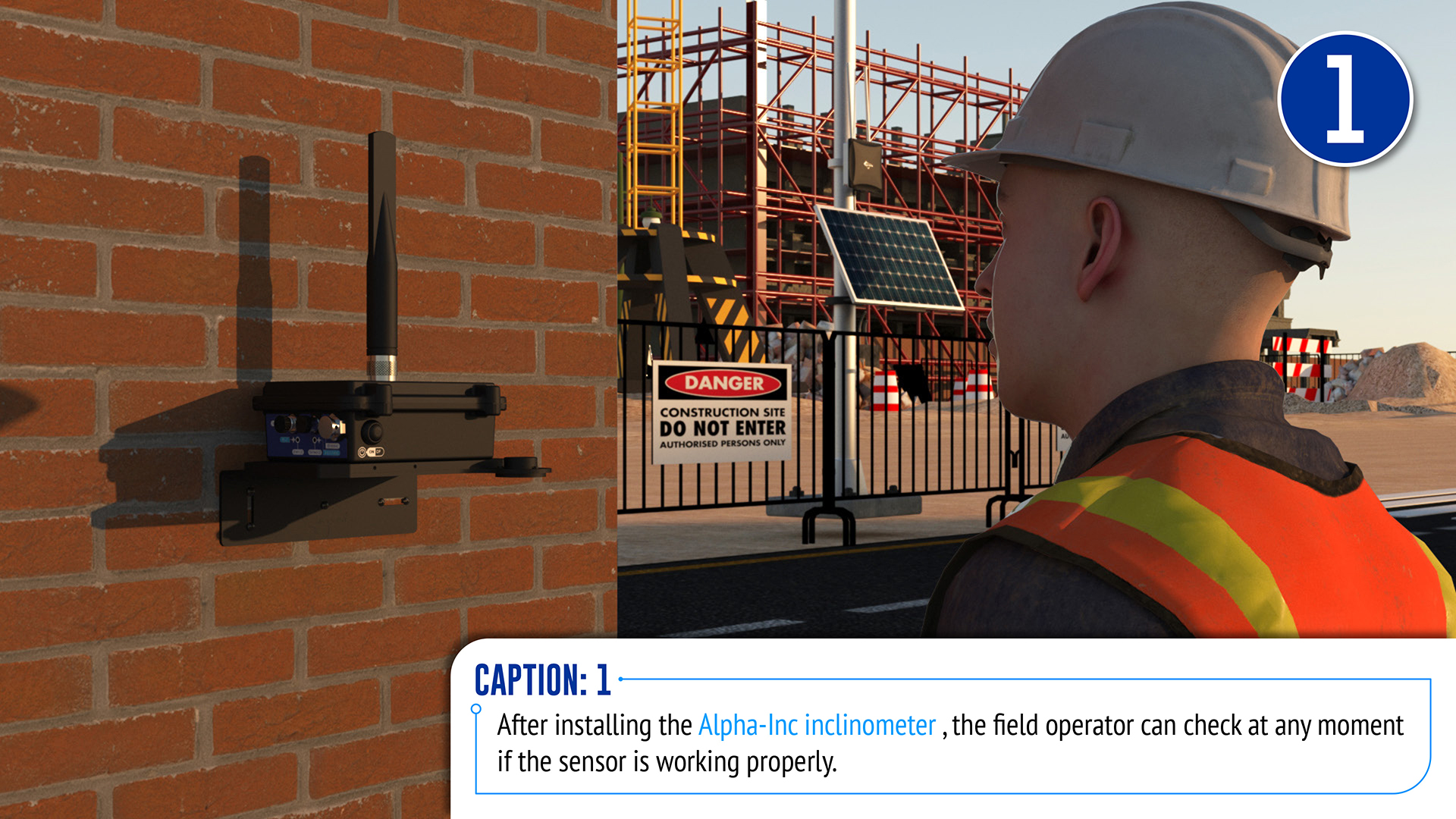

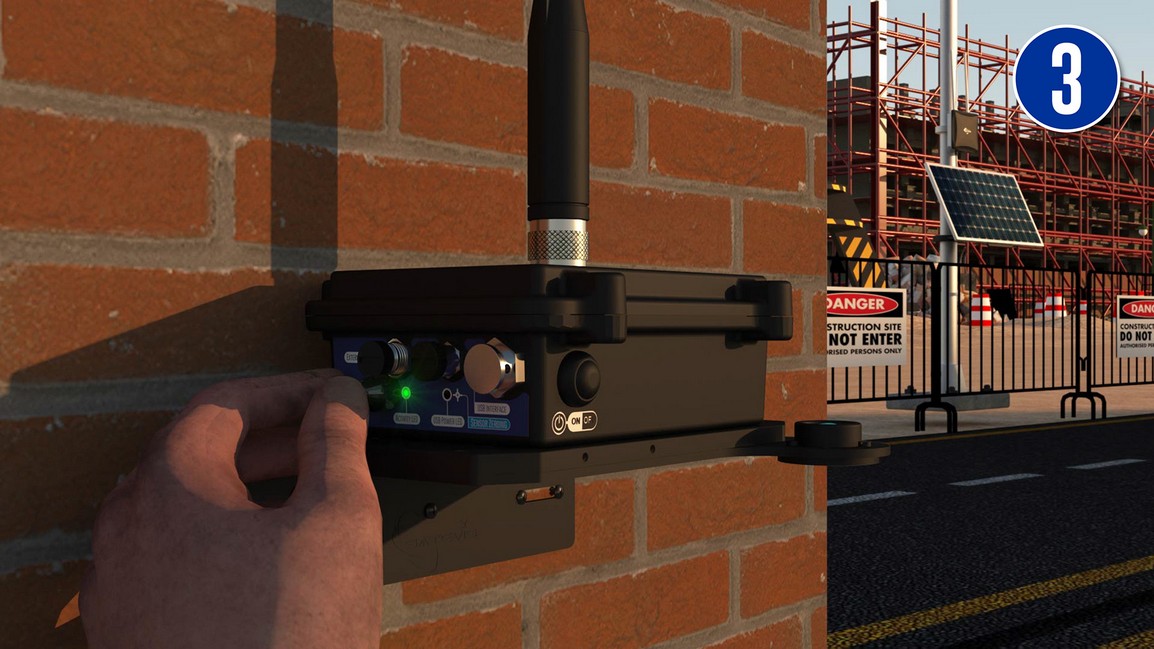

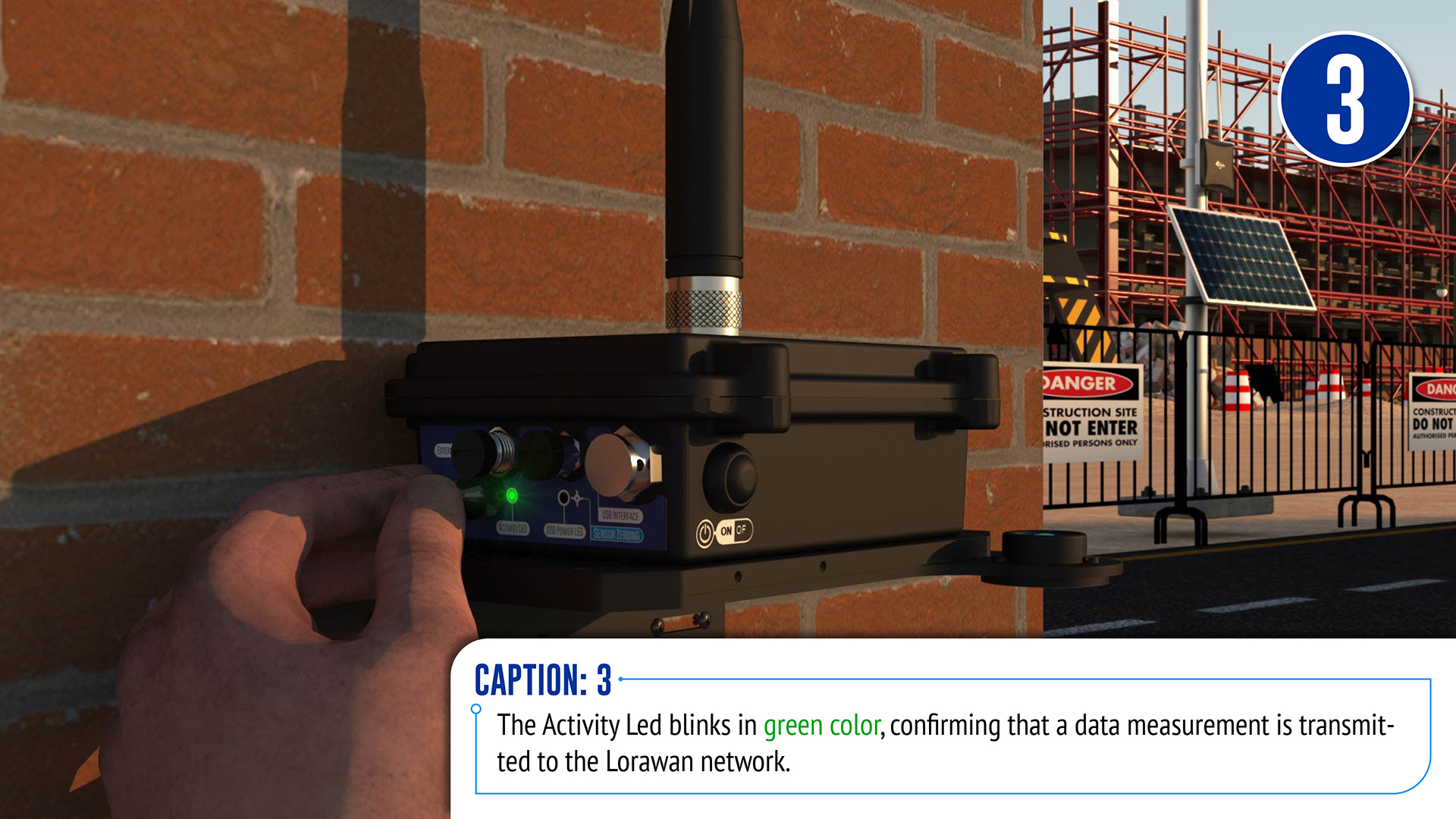

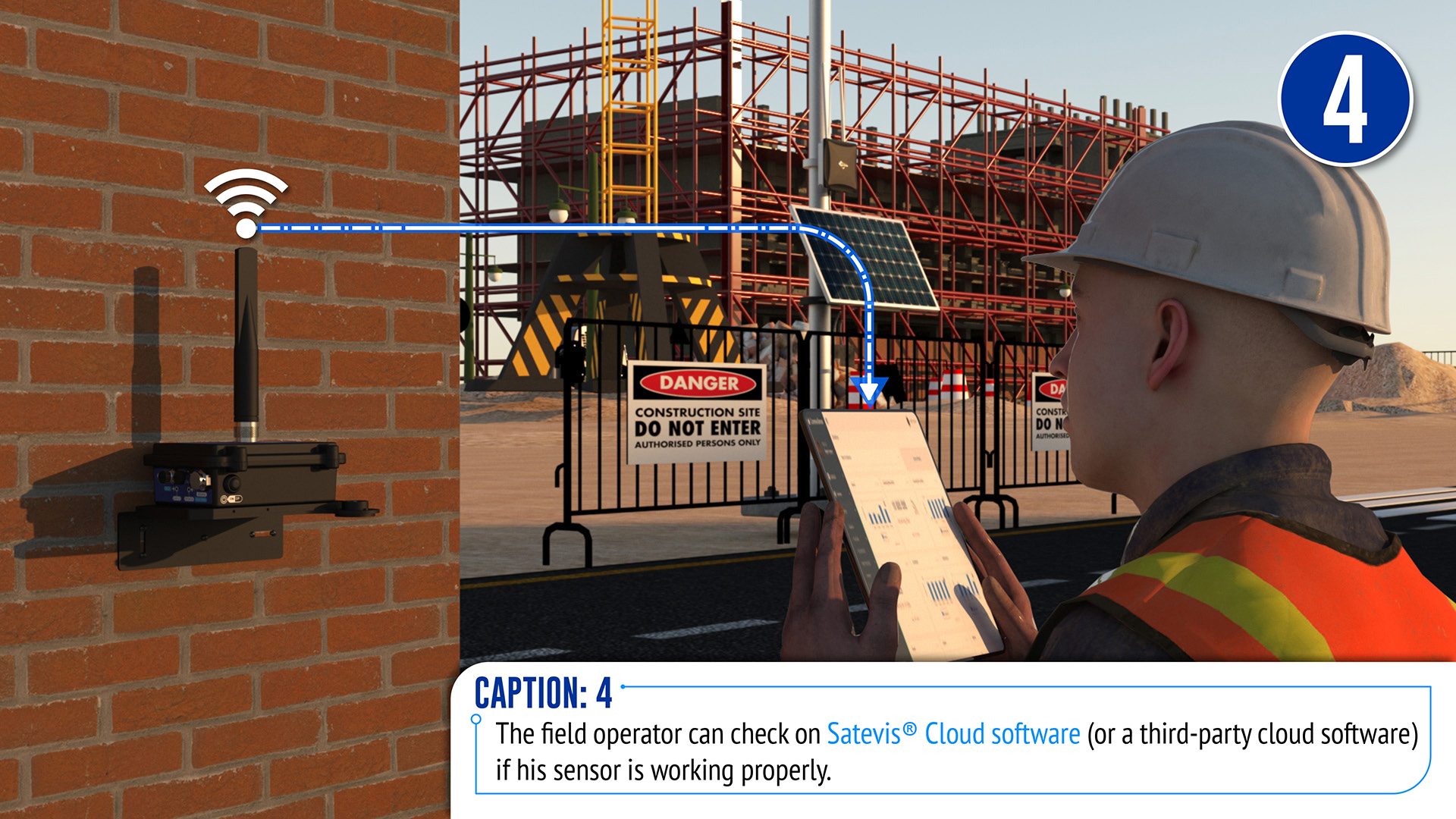

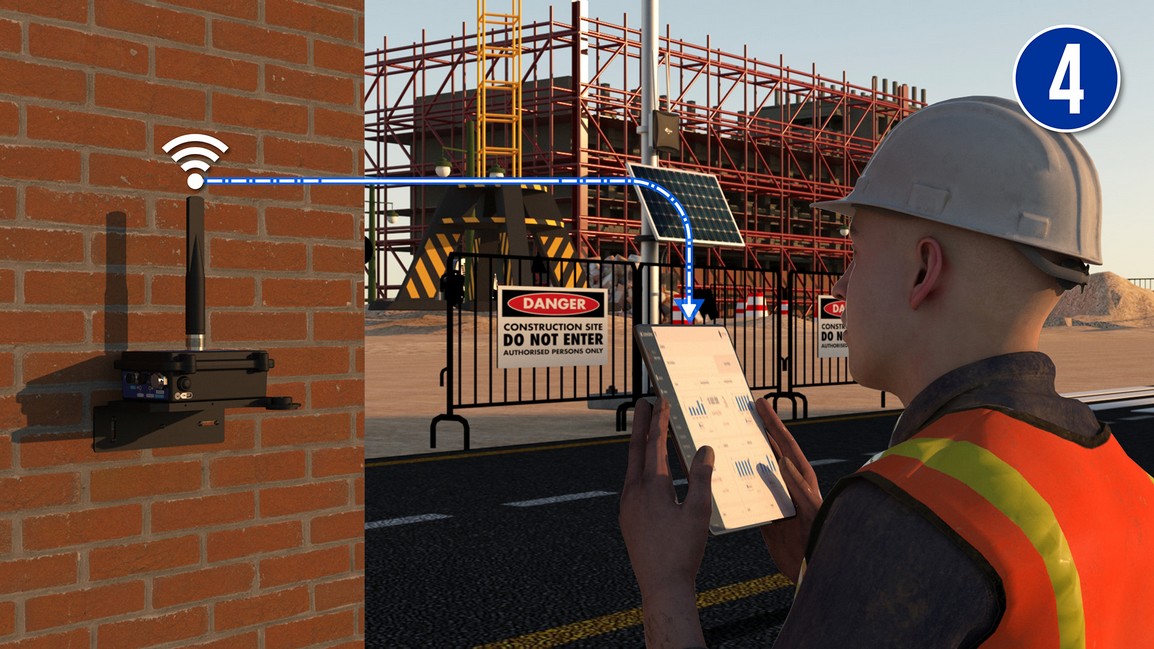

Transmits Data on user request , works with a magnet pointing to Hello label

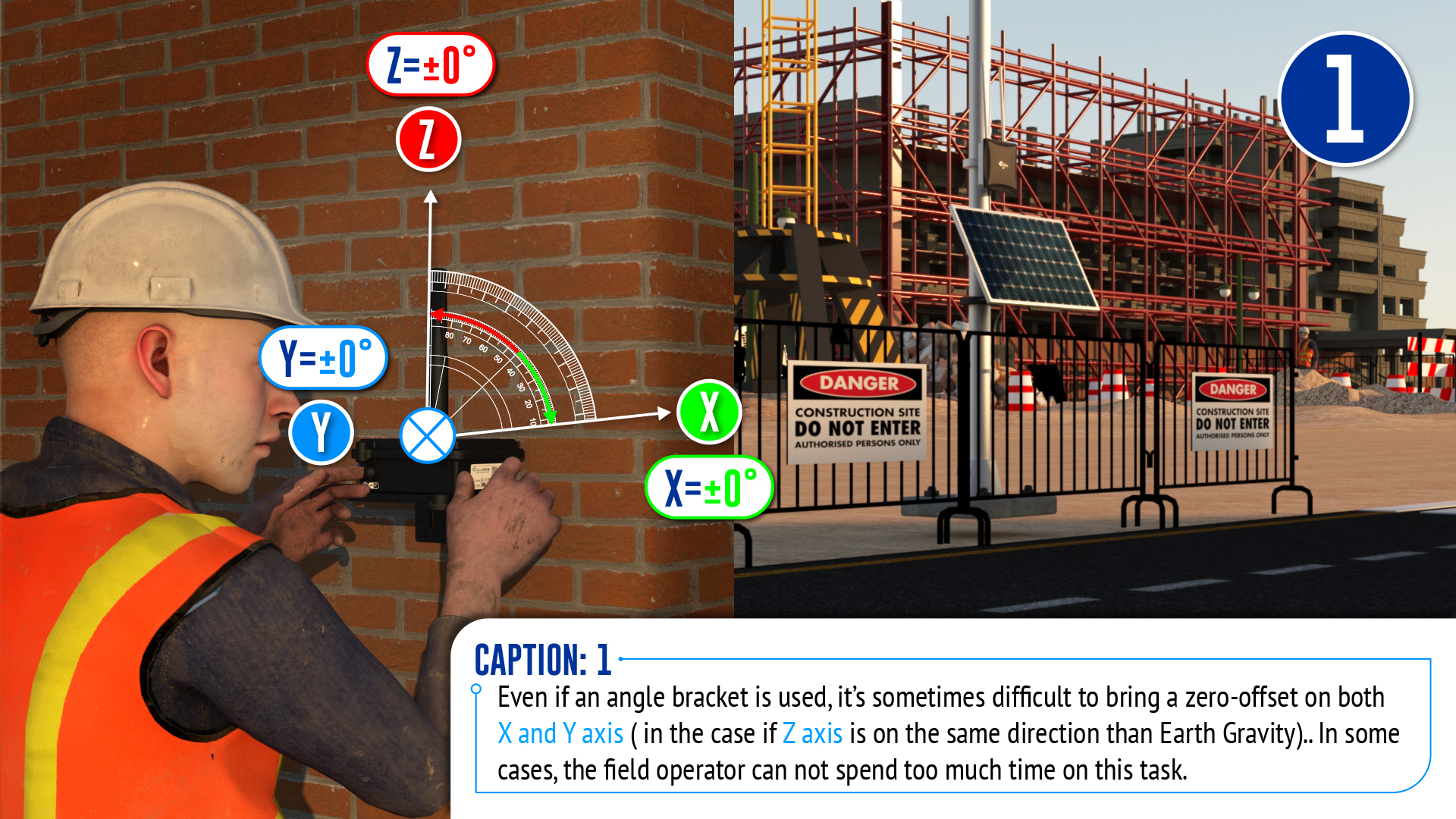

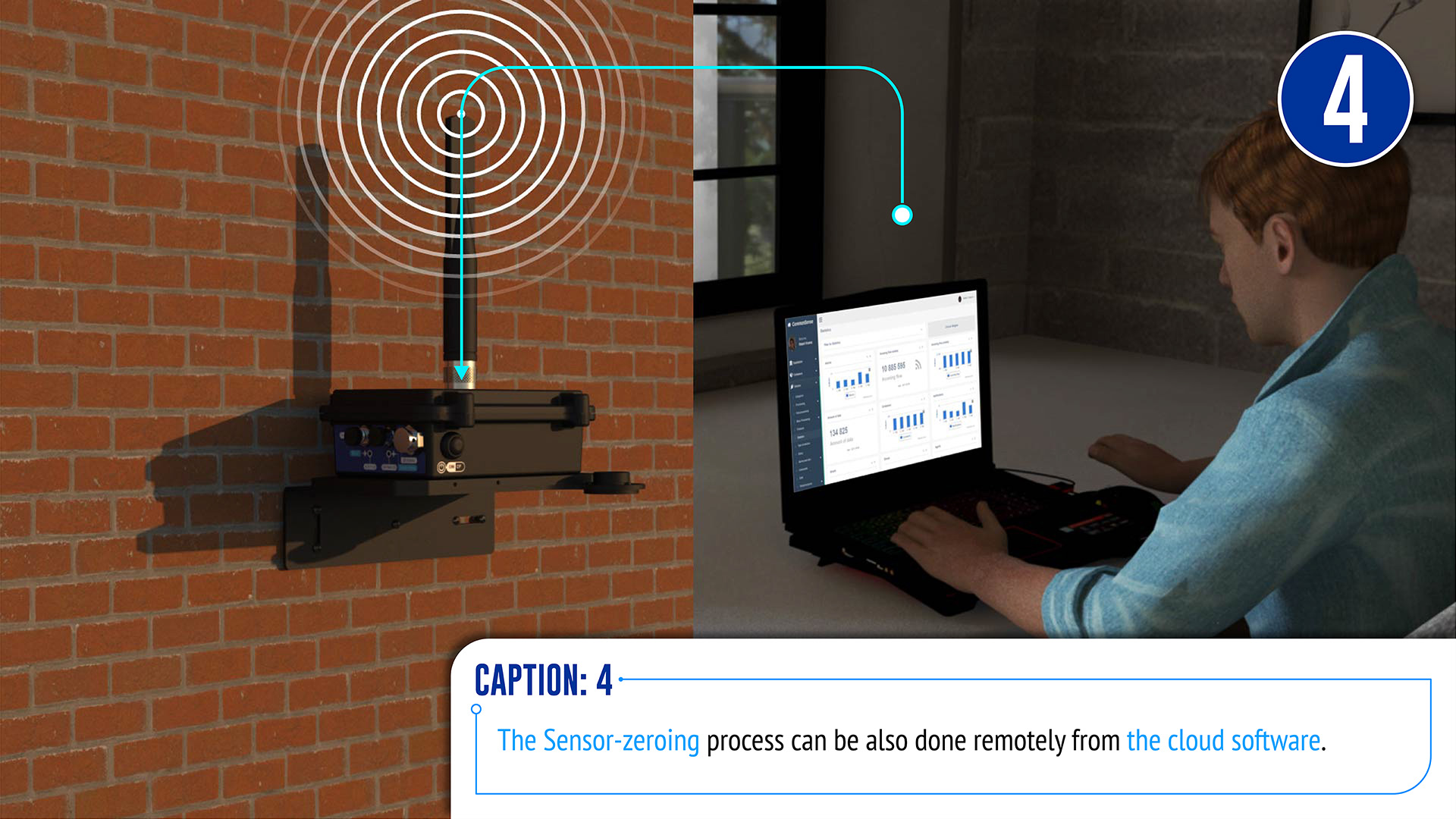

Sensor Zeroing

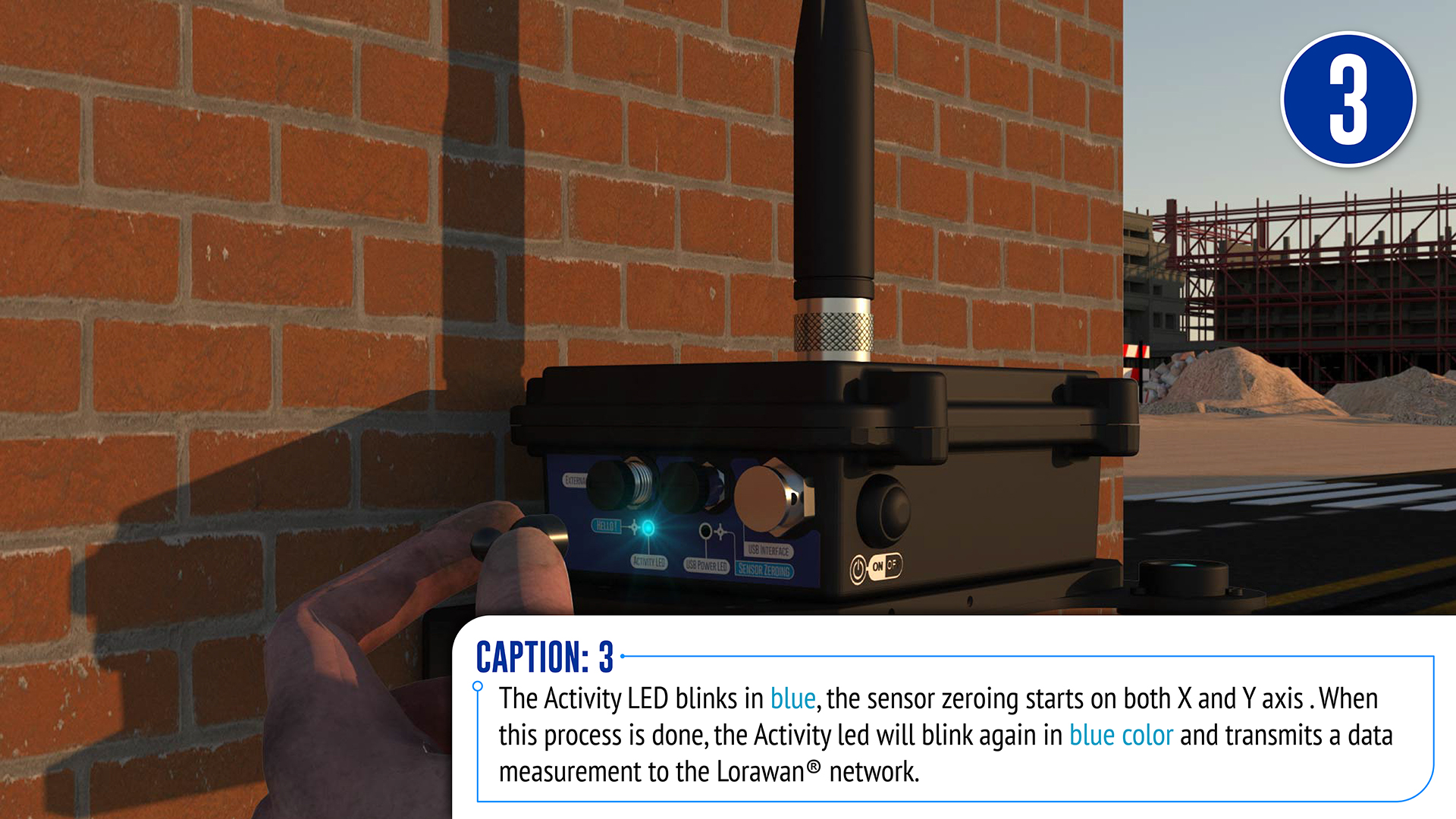

sensor zeroing on user request , works with a magnet pointing to sensor zeroing label
Multi color LED
Green: network connection, data transmission
Blue: Sensor zeroing successful/Hello Message Transmitted successfully
Environmental and Mechanical
Casing
Aluminum & Waterpoof casing
Dimensions in mm (LxWxH): 151x130x55 mm (without antenna)
Weight : 950g
IP | NEMA Rating
IP67 | Nema 6  / IP68 (M8 Connector cap mounted , self-fusing is used around antenna connector)
Shock resistance
100g during 50 ms
Operating Temperature
-40°C to +75°C
Sunshield should be used if the device is exposed to sun radiation from +68°C
Shielding
EMI SHIELDING GASKET
Relative   Humidity
0 to 98 %RH
Norms & Radio certifications
·CE Labelling Directive R&TTE (Radio) ETSI EN 300 328
·FCC (North America)
·ARIB STD-T66 Ver 3.6
HS Code: 9031.80.20
EAR99
ROHS - Directive 2002/95/EC
Video
«Blue line »
Discover SATEVIS® ALPHA-INC<br />«Wireless IOT Tri-Axis Inclinometer ( LoRaWAN® protocol) with Scalable Measuring Range (±10° and ±85°)»
Non-Contact Buttons and LEDS description
«Blue line »
Download Ressources
«Blue line »
Support
«Blue line »
2 YEAR LIMITED WARRANTY
We’re confident of the quality of our products and we’ll repair, without charge, any defects due to faulty materials or workmanship within the specified warranty.
SUPPORT MANUAL
Do you need help with any of our SATEVIS® products ?
