Name: High Precision Displacement sensor with Easy-Sense Function
Uploaded: 2024-10-30
Description: Presentation video of our displacement sensor that connects to our wireless inclinometer with Lorawan protocol. This sensor can be seamlessly connected to your Satevis Alpha Inc. device for real-time monitoring of both structural inclination and cracks. The Easy-Sense feature allows automatic reading of sensor settings without human intervention.

Spring Return

Displacement Sensor with Easy-Sense Function

Video

Discover SATEVIS® ALPHA-INC<br />«High Precision Displacement sensor with Easy-Sense Function»

Technical Specifications

Product reference

SAT-EASY-SENSE-DISP-SR-MS-YY-CL-XX

MS-YY - Measurement stroke

10mm, 50mm and 100 mm

CL-XX– SENSOR CABLE LENGTH

from 1m to 20 meters

Example: SAT-EASY-SENSE-DISP-SR-50MM-CL-10M Displacement sensor with spring return, Measurement stroke 50mm, Cable length 10 meters

Displacement sensor specifications
Sensor technology	Linear potentiometer with spring return
Measurement stroke	10mm, 50mm and 100mm
Linearity	±0.2% ( 100 mm) , ±0.5% (50mm, 10mm)
Repeatability	< 0.01mm
Resolution	0.0003mm for 10mm measurement stroke 0.0017mm for 50mm measurement stroke 0.0034mm for 100mm measurement stroke
Resistance	2 kOhm: 10….50mm 5 kOhm : 100mm
Sensor Voltage	3.3VDC Powered directly by Satevis® device
Integrated Analog to Digital Converter	Integrated 15-bit Analog to Digital Converter
Displacement speed	< 5m/s
Mechanical Life	100 millions movements
Casing dimensions	18 mm of diameter
Casing material	Anodized Aluminum
Rod material	stainless steel
Rod diameter	5 mm of diameter
Mechanical mounting	Variable brackets
Waterproofness	IP66
Operating Temperature	-20°C to +80°C
Connection Plug	M8-4Pins connector
Satevis® compatibility	compatible with Satevis® Alpah-Inc/Alpha-Inc Kompakt and
Easy-Sense function
Internal Flash Memory	Automatic Readout of Sensor Settings: • Sensor Type and Range • Sensor Calibration settings and date of calibration ; • Alarms Thresholds Values • Sensor Zero-offset and date of Sensor zero offset
Calibration	Calibration performed at Beanair Lab.
Alarms Management	Three level of Alarms: Critical/Severe/Minor With High/low and Mixed Alarms Thresholds
Sensor Zeroing	Sensor Zeroing can be performed on site or Remotely from Satevis Cloud Application (or Third-Party Cloud software)

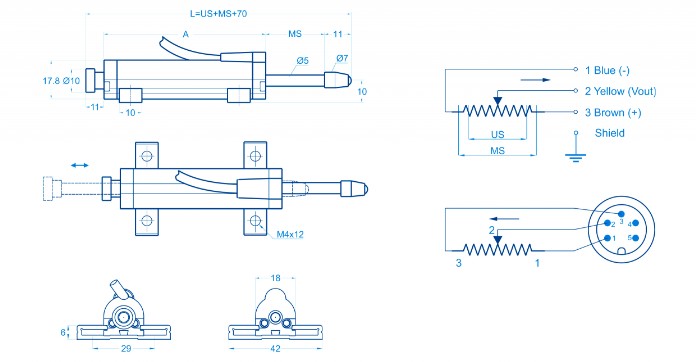

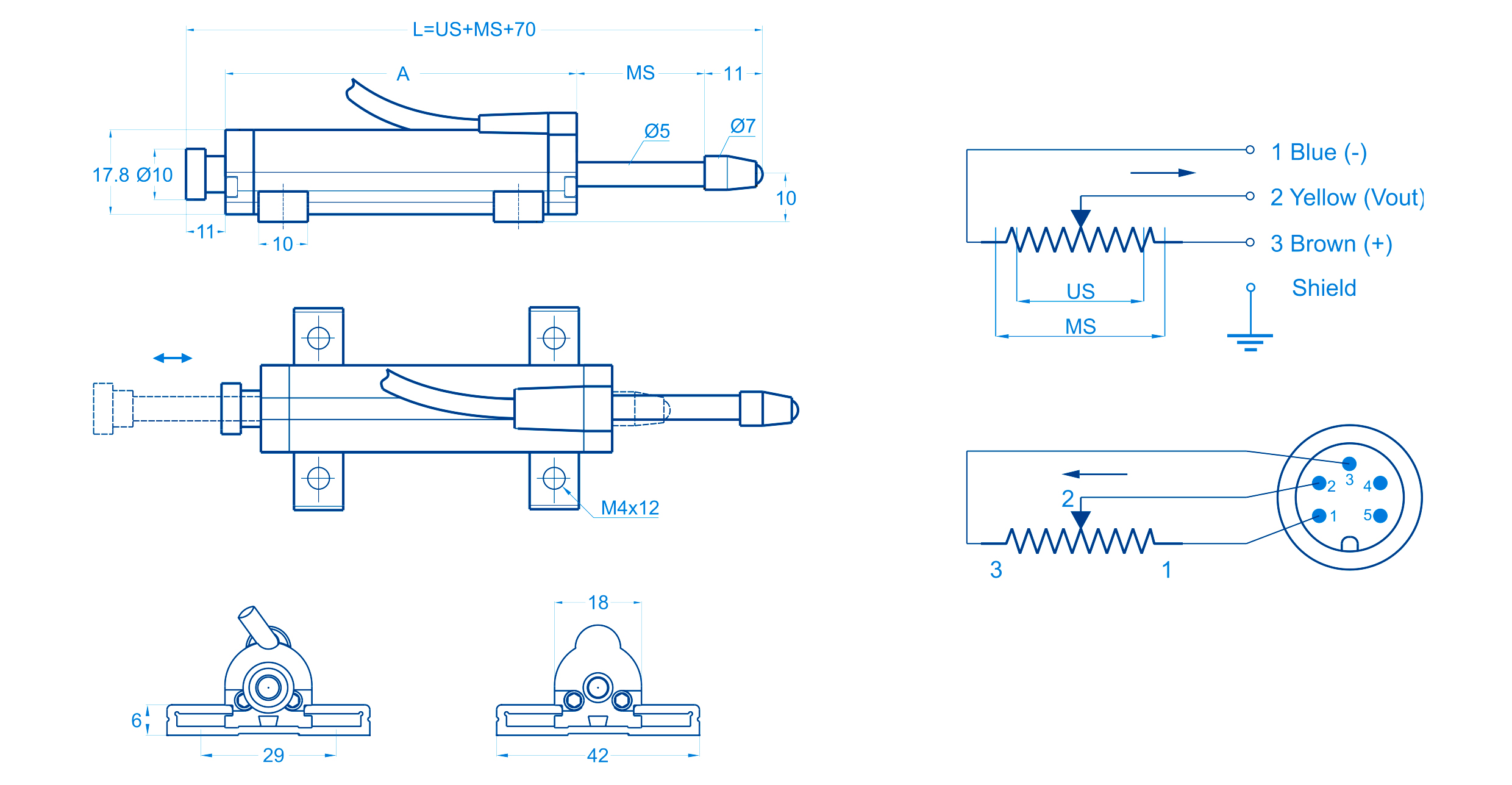

A
SAT-EASY-SENSE-DISP-SENS-SR-MS-10MM	58
SAT-EASY-SENSE-DISP-SENS-SR-MS-50MM	104
SAT-EASY-SENSE-DISP-SENS-SR-MS-100MM	163

DISP-SENS (mm)	10	50	100
US (Usefull Stroke)	10	50	100
MS (Mecanical Stroke)	13	53	103
L (total Length)	93	179	288
